China Low Cost Metal Lathe Machine for Sale Ca6150 Ca6250

Product Description

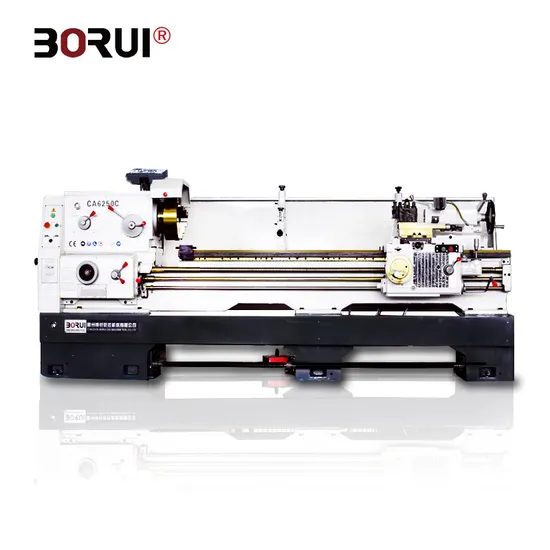

China low cost metal lathe machine for sale CA6150 CA6250
Product Description
CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Product main technical specification:

Specifications		CA6150 CA6150B CA6150C	CA6250 CA6250B CA6250C
Max. Swing over bed		500mm
Max. Swing over carriage		300mm
Max. swing in gap		--	720mm
Effective gap length		--	210mm
Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm(24steps)
	Hole through spindle	52mm. (80mm). [105mm]
	Spindle taper	NO.6(MT6)(Φ90 1:20)[Φ113 1:20]
Feed	Number of feeds	64(kinds)(for each)
	Range of metric threads(kinds)	(1-192mm)44kinds
	Range of inch threads(kinds)	(2-24tpi)21kinds
	Range of module threads(kinds)	0.25-48(Moduie39kinds)
	Range of pitch threads(kinds)	1-96DP(37kinds)
	Cross slide travel	320mm
	Top slide travel	140mm
Tailstock	Max. tail stock spindle travel	150mm
	Tail stock spindle diameter	75mm
	Taper of tail stock spindle center hole	NO.5(MT5)
Main motor		7.5KW(10HP)
Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550x1140x1750
	Overall dimensions for1000mm	2700x1140x1750
	Overall dimensions for1500mm	3200x1140x1750
	Overall dimensions for2000mm	3700x1140x1750
	Overall dimensions for2200mm	4030x1140x1750
	Overall dimensions for3000mm	4850x1140x1750
	Overall dimensions for4000mm	5800x1140x1750
Weight (kg)	Length	G.W N.W.
	Weight for 750mm	2100 1990
	Weight for 1000mm	2190 2070
	Weight for 1500mm	2350 2220
	Weight for 2000mm	2720 2570
	Weight for 2200mm	2800 2600
	Weight for 3000mm	3300 3200
	Weight for 4000mm	3500 3400

Standard Accessories: 1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
Optional Accessories 1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
Details Display
Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
