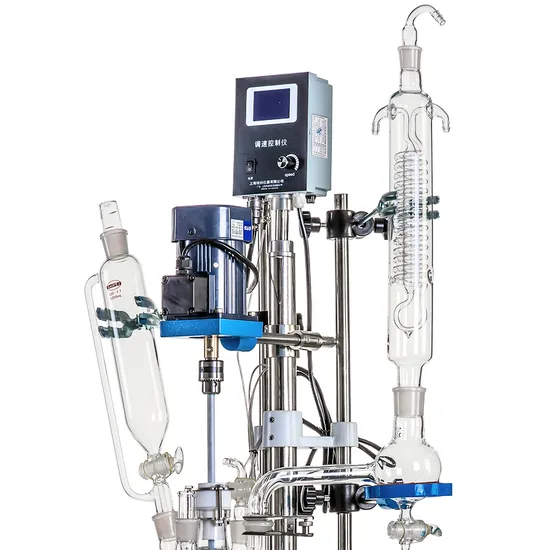

Lab High Pressure 5L Bioreactor Chemical Jacketed Glass Reactor
| US$1,000.00-1,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GR-5L
Type
Tank Reactor
Material
Glass
Capacity
<50L
Structure
Double Jacketed
Pressure
Negative
Agitator Model
Paddle Agitator
Tower Reactor Type
Double Jacketed
Heating
Outside (Inside) Coil Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Name
High Quality Industrial Lab 5 Liter Reactor
Application
Chemical Testing Research
Volume
5L
Heating Method
Electricity Heating
Heating Type
Heating Temperature Control Module
Glass Material
Borosilicate Glass 3.3 (Gg-17)
Machine Type
Double Layer
Transport Package
Wooden Box
Specification
Double jacketed
Trademark
Linbel
Origin
Shanghai
Production Capacity
1000set/Month
Product Description
| Model | GR-5L | |
| Volume(L) | 5 | |
| Jacket volume(L) | 2 | |
| Condensation area(m²) | 0.3 | |
| Feeding tank volume(L) | 0.5L | |
| Recovery tank volume(L) | 3 | |
| Kettle cover diameter | Impeller diameter | 50# flangetype |
| Temperature sensor diameter | 40# flangetype | |
| Condenser connection | 50# spherical grinding | |
| Liquid feed inlet | 34# standard grinding×1 | |
| Feeding tank interface | 40# standard grinding | |
| Solid feed inlet | / | |
| Glass assembly | High borosilicate glass 3.3 | |
| Main frame | SUS304 | |
| Stirring paddle | Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium | |
| Motor | For viscous materials, high-power motors can be used | |
| Move method | Lockable casters | |
| Working temperature(ºC) | -120ºC~300ºC | |
| Maximum temperature difference(ºC) | ≤60 | |
| Pressure in kettle(MPa) | -0.1~0.1 | |
| Jacket pressure resistance(MPa) | ≤0.1 | |
| Pressure rise rate of vacuum system | ≤2kPa/h | |
| Mixing motor power(W) | Common 200W/ explosion proof 370W | |
| Speed regulation mode | Frequency control | |
| Speed adjustment range(rpm) | 0~600 | |
| Temperature sensor | PT100 | |
| Temperature display accuracy(ºC) | ±0.1 | |
| Temperature range | Water: RT~90ºC | |
| Oil: RT~300ºC | ||
| Interface size of stainless steel insulation hose | ½in external screw thread | |
| Seal material | PTFE | |
| Installation height of discharge valve(mm) | 205 | |
| Power | 220V/110V,50/60Hz | |
| Environment temperature(ºC) | 5~35 | |
| Relative humidity(%) | ≤ 65 | |
| Size(mm) | 520W×500D×1510H | |
| Weight(kg) | 60 | |
