Automatic Carbide Band Saw Blade Sharpening Machine

Automatic Carbide Band Saw Blade Sharpening Machine

US$420.00 1 Set (MOQ)

Basic Info.

Model NO.
MR1111, MR1115, MR1118
Type
Tool Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE
Condition
New
Name
Automatic Band Saw Blade Sharpener
Key Words
Band Saw Blade Sharpener
Speed
50 Tooth/Min
Application
Grinding Band Saw Blade
Power
Electric Type
Control
Automatic
Transport Package
Iron Frame Packaging/Customized
Specification
52kg
Trademark
sawmill-world
Origin
China
HS Code
8465950000
Production Capacity
500set/Year

Product Description


Product Description

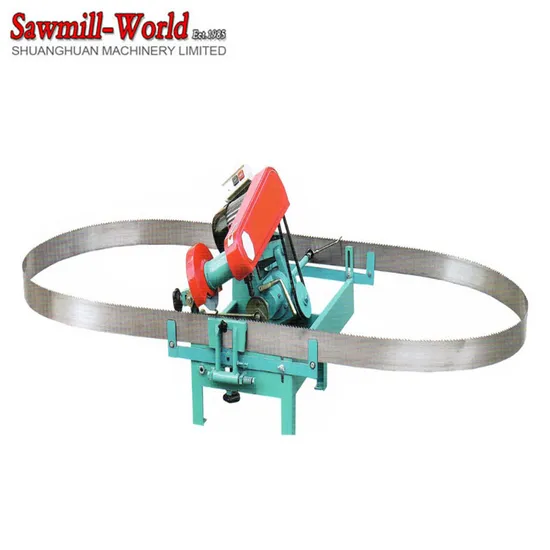

Automatic Band Saw Blade Sharpener
Mainly used to polish and process the tooth flank,tooth back,and the tooth throat of the jugged saw blade.
It's size is small and easy to adjust and simple structure.
Model MR1111
Grind Width MM 15-80
Sand Wheel Diameter MM 150
Band Saw Blade Pitch MM 8-20
Working Frequency Tooth/Min 50
Overall Size MM 830*560*530
Packing Size MM 900*600*550
Net/Gross Weight(kg) 52/70

Model MR1115
Grind Blade Width Range 30-125mm
Sand Wheel Diameter 250mm
Grind Teeth Pitch Range 10-30mm
Grinding Speed 50tooth/min
Overall Size 950*650*600mm
Weight 100kg

Model MR1118
Grind Blade Width Range 60-150mm
Sand Wheel Diameter 250mm
Grind Teeth Pitch Range 10-40mm
Grinding Speed 50tooth/min
Overall Size 900*750*700mm
Weight 200kg

Detailed Photos

Related Products
Portable Horizontal Band Saw
Portable horizontal band saw is our patented product,it is easy to install and operate,smooth finishing by carbide band saw blade.
The cutting kerf is small,reduce the waste to high output.
Suitable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest.
Ultra Portable Horizontal Band Saw
Ultra portable horizontal band sawmill,smooth finishing,easy to move around,suitable to cut wood for the farm owners and DIY woodworking.
Cutomer Feedback


Company Profile

Shandong Zouping Shuanghuan Machinery Co.,Ltd.is one of the world's leading manufacturers of high quality sawmills.
Established in 1988,the company has always been committed to the production and R&D of sawmills and sincerely serves 11,000 enterprises.Our products have been exported to 61 countries in the world.
The company's registered brand "SAWMILL-WORLD"including horizontal band sawmill,vertical band sawmill,multiple blade rip sawmill,circular sawmill and chain sawmill and so on.
With the standardization of quality management and service,it has won the favor of many customers.
