Polyester Jersey Automatic Flat Knitting Machine Computerized Machinery Manufacturer Ningbo Haoyue

Product Description

Polyester Jersey Automatic Flat Knitting Machine Computerized Machinery Manufacturer NINGBO HAOYUE Product Description

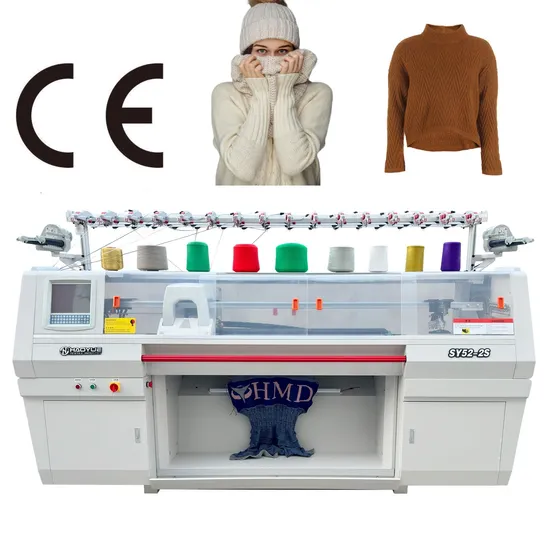

NINGBO HAOYUE Double system sweater knitting machine has high roller, high-performance sinker, dynamic stitch, motor control reserving carriage,digital technology, high-speed and efficient, to achieve pointelle, tuck, jacquard, intarsia, full needle jacquard, apparent shape, hidden shape, and other irregular patterns. suitable for wool, cashmere, cotton, chemical fiber, silk and all kinds of blended yarn, the production of sweaters, blanket, scarfs, gloves, hats and knitted apparel accessories.
Different outlook available(HP model) Different outlook available (New model)
Detailed Photos

HENGQIANG CONTROL SYSTEM	MAIHONG CONTROL SYSTEM	RAYNENG CONTROL SYSTEM
The machine system can be customized according to your requirements.	The machine system can be customized according to your requirements.	The machine system can be customized according to your requirements.

CARRIAGE	NEEDLE BED	DYNAMIC STITCH
Linear velocity of the head can reach 1.6m/s.Each system is equipped with five functions as rib transfer, weaving, hangging head, non-weave and pin. In addition, it is secured by short-circuited electromagnetism, motor overcurrent. Locked-Rotor, etc...	Split design, insert part fits with the needle are made of imported steel through fine blanking and grinding, which reduces the wear and tear of the stitches, decreases the resistance of the stitches, and effectively improves the knitting efficiency	It supports multi-segment stitch control of patterns in one line, realizes the weaving of multiple fabrics with different densities in the same line, and further improves weaving efficiency and diversity of the weaving forms.

DISPLAY SCREEN WITH KEYBOARD	SERVO MOTOR	16 YARN FEEDER
It adopts industry LCD display with graphic touch control, multi-color, all time monitoring function. The data of the knitting amount, time, speed, roller, stitch, yarn feeder, etc...	Using cani control, can achieve the rapid return and direction changing of the machine carriage, accurate positioning, smooth conmutation .	The 16 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the control program can automatically adjust the position.

AUTOMATIC RESET PROBE	POSITIVE YARN FEEDER	AUTOMATIC REFUELING
Automatic reset function, which ensures any deviation of the probe can be reset automatically regardless of the area.	Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency.	In order to make the machine work better, we have developed 24-hours intelligent system for automatic refueling.

Product Parameters

Gauge	3G,3.5G,5G,5/7G,7G,8G,9G,10G,12G,14G,16G,18G
Knitting width	52,60,66,72,80,100inch
Knitting system	Double system Double carriage double system(optional) 2+2
Knitting speed	Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s.
Knitting function	Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.which can be installed or removed simply from the carriage and maintained easily.
Transfer system	Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer , another cam system for knitting, which will achieve high production.
Sinker system	Controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency.
Take-down system	Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between0-100.
Color-changing system	2×8 yarn feeders on each side of 4 guide rails, shift able on any needle position.
Yarn feeder device	Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality. 3G-10G Adopts roller feeding device 12G-18G Adopts the yarn storage device
Protection system	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4. Support multi-language operation as Chinese and English, Spanish, Russian etc.
Refueling device	Automatic refueling: Control the refueling time and frequency by setting the time. The oil pump lubricate the jack and long jack needle on the needle bed automatically to reduce the wear of the machine and increase its service life.
Network function	Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.
Non waste yarn Comb device	Non waste yarn Comb device(Optional)
Volume and weight	3000*1000*1800mm,1150kgs(52inch)

Packaging & Shipping

Knitting Samples
Company Introduction
NINGBO HAOYUE is a professional high-tech manufacturer, production & sales of computerized flat knitting machine and professional collar knitting machine(such as sweater, shoe upper, polo collar,rib, scarf, hat,blanket etc.) By 25 years concentration and persistence,accumulated experience and technical progress, We have won the trust from many domestic and overseas suppliers. We own abundant technical advantages. Excellent facility,perfect quality management system. We will offer better quality, better service, better prices to our customers. People foremost, success through quality. Mutual benefit and double-win outcomes are our conception.
