Baking Food Machine Cake Machine Stainless Steel Peach Pastry Forming Machine for Production Line

Product Description

Product Description

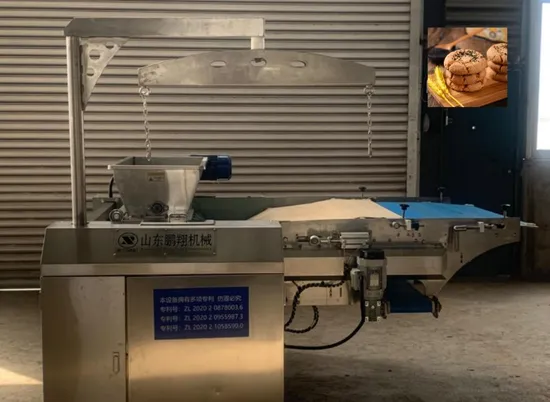

Baking Food Machine Cake Machine Stainless Steel Peach Pastry Forming Machine for Production Line
Parameters:
1. Power:6.5kw; Voltage: 380V
2. Dimension(meter): 2.2*1.5*2, weight: 1.2T
3. AIERFA or Zhongchen frequency converter, mold and fabric belt speed can be monotonically or uniformly adjusted with precise demolding. Double driving forces FABMODA cycloidal pin wheel reducer, 1 inch chain, chain tension using both spring and screw design.
4. This machine is equipped with a mold roller lifting device with a power of 0.75kw and an NMRV reducer lifting system. Easy to replace molds, cantilever rotation type: the main cantilever adopts a dual pressure bearing design, more load bearing and durability. The main cantilever and crossbeam are made of 304 stainless steel.
5. The pressure and gap between the pneumatic lifting rubber roller and the mold can be adjusted automatically for smooth transportation and the dough is formed evenly and stably. Food grade oil resistant rubber roller.
6. Knotless conveyor blending fabric belt. Solve historical issues such as easy deviation, opening, and non-durability of knotted blending fabric belts, as well as dough not demolding from PU, PVC conveyor belts.
7. The material of the feeding roller is 304, and ultra-high polymer baffles are installed on both sides.
8. This machine has two conveyor belts. Waste can be recycled from the gap between the primary and secondary belts. Food grade PU material.
9. The primary and secondary conveyor belts of this machine are equipped with automatic deviation correction devices. Adopting pneumatic device mechanical valve induction(photoelectric switch signal interference is prone to damage). Truly realize unmanned management.
10. The side return conveyor device of this machine allows for centralized recycling of waste materials and then returning to hopper for utilization.
11. The machine steel plate is 20mm thick manganese plate, and the outer cover material is stainless steel.
12. Coaxial mold design, mold material: Korean LG polycarbonate resin.
13. Electrical control cabinet: Honeywell contact and breaker, Germany Siemens System, Taiwan Mean Well 24V power supply, Schneider relay.
14. Fabric belt scraper: RV reducer adjusts the angle.
15. Divider knife: divider knife shaft is made of hexagonal steel, containing (CR-V)chromium vanadium steel. Divider knife blade: manganese steel.
16. Mold feeding roller end face baffle: ultra-high polymer, thick 40mm
17. Hopper: flip back type, easy to replace mold.
Detailed Photos
Company Profile

>>Company Information
Shandong Pengxiang Machinery Technology Co., Ltd. is a professional food machinery manufacturer that has been committed to this field for many years since 2001 . We have numerous experienced workers and our own factories, design departments, sales departments, international departments, etc. Our goal is always to pursue perfect quality and high-quality service. Our main products are rotary ovens, tunnel ovens, crispy biscuit and cake making machine, cooling line, turning conveyor belt, biscuit/cake sorting machine,dough mixers, trolleys and sheet pans. We also do the production line for moon cake, crispy biscuit, crispy cake etc. Welcome to visit our factory!
FAQ

Q1: Are you manufacturer?
A: Yes, we are a manufacturer which is specialized in bakery food machinery with more than 20 years of experience. We provide customized services for special requirements.
Q2: Do you provide customized services?
A: Yes, we provide customized services for special requirements.
Q3: How is payment?
A: We accept T/T and L/C.
