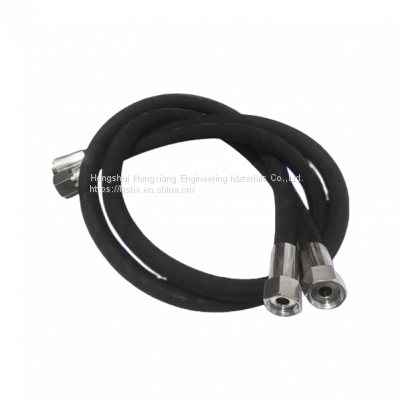

SAE 100 R16 Steel Wire Reinforced Hydraulic Hose
Product Details
Product Details
Product Description
Product DescriptionSAE 100 R16 hydraulic hose has a smaller bending radius and outer diameter, which is more suitable for the connection of hydraulic equipment with limited installation space.
This kind of steel wire reinforced hydraulic hose is composed of three parts: inner tube, reinforcement layer and outer cover layer. The inner tube is made of oil-resistant synthetic rubber for excellent oil delivery. The reinforcing layer is braided with one or two layers of steel wire, which has strong resistance to high pressure. The outer cover is made of weather resistant synthetic rubber, making the hose resistant to weathering, ozone, ageing, abrasion, corrosion and cutting.
Applicable Specification：SAE 100 R16
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).
| Inside Diameter(ID) | Reinforcement Diameter (RD) | Outside Diameter (OD) | Max Working Pressure | Min Burst Pressure | Bend Radius | Weight | ||||
| DN | inch | mm | mm | mm | bar | psi | bar | psi | mm | Kg/mt |
| -04 | 1/4 " | 6.3 | 9.7 | 13.3 | 400 | 5800 | 1600 | 23200 | 75 | 0.26 |
| -05 | 5/16 " | 7.9 | 11.5 | 15.2 | 350 | 5075 | 1400 | 20300 | 85 | 0.32 |
| -06 | 3/8 " | 9.5 | 13.5 | 17.2 | 330 | 4785 | 1320 | 19140 | 90 | 0.38 |
| -08 | 1/2 " | 12.7 | 16.7 | 20.6 | 275 | 3988 | 1100 | 15950 | 130 | 0.51 |
| -10 | 5/8 " | 15.9 | 20.3 | 24.3 | 250 | 3625 | 1000 | 14500 | 170 | 0.66 |
| -12 | 3/4 " | 19.1 | 24.3 | 28.3 | 215 | 3118 | 860 | 12470 | 200 | 0.83 |
| -16 | 1 " | 25.4 | 31.3 | 35.5 | 165 | 2393 | 660 | 9570 | 250 | 1.11 |
