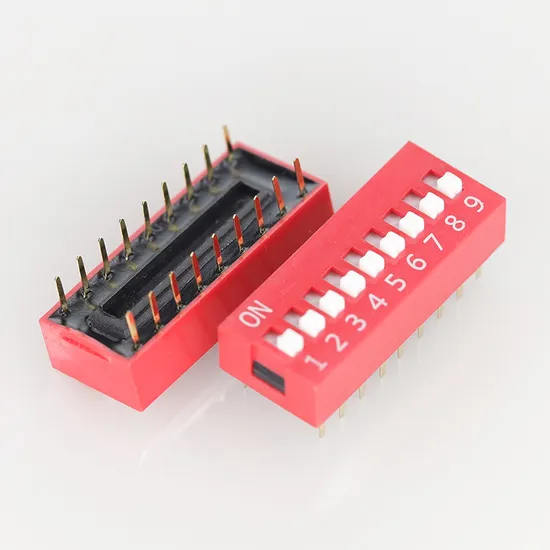

Homyet Compact Tht DIP Switch with Raised Actuator 1 to 12 Poles

Product Description

General Information

Operating Temperature	-40 up to +85 °C

Electrical Properties

IR	100 mA
VR	50 V (DC)
Contact Resistance Initial	50 mΩ
RISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties

Operation Force	800 g
Electrical Life	2000 Cycles
Actuator Type	Raise Type
Switch Position	Off

Material Properties

Cover Material	PBT
Cover Flammability Rating	UL94 V-0
Base Material	PBT
Base Flammability Rating	UL94 V-0
Actuator Material	PBT
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Packaging Properties

Packaging	Tube

Features:
1.Micro-Miniature, Innovative design
2.It has good feeling and long life
3.Snap-in type, can be mounted directly on P.C.Board and good for electrostatic discharge
4.It has a lot of choices for button shape and height and it is easily to install
Applications:
Include low power on/off designs, instrumentation, telecommunications, performance audio, computers/servers, networking and more.
1) Computer products
2) Consumer products
3) Communication equipments
4) Instrumentation
Welding Conditions:
1.Hand soldering
Use a soldering iron of 30 watts, controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260ºC max. Condition for soldering Temperature Profile
Why Choose Us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
