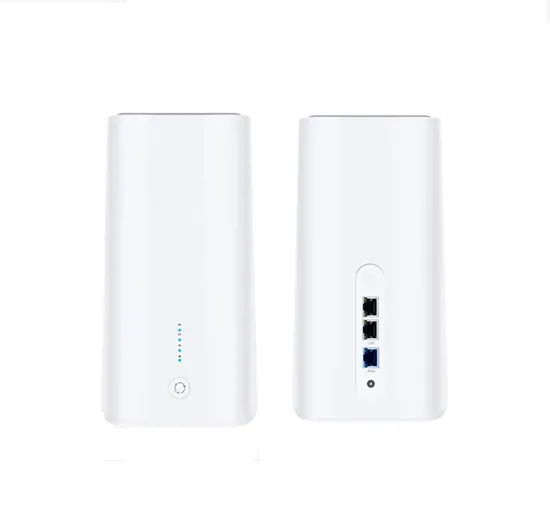

11ax Wi-Fi6 Standard 5g Router with SIM Card Slot, Qualcomm Chipset Support VPN, Ipv6, Guest Wi-Fi, Parental Control

Product Description

11ax Wi-Fi6 standard 5G router with SIM card slot,Qualcomm chipset support VPN, Ipv6,Guest Wi-Fi, Parental Control Product Description KS-5G-XM530 is an high speed 11ax Wi-Fi6 standard 5G router with SIM card slot,Qualcomm chipset, dual band, maximum 3.4Gbps in 5G speed, plug and play, satisfied with growing-up high speed mobile connections requirements and provides the fast speed beyond your imagination.
Main Features:
Multiple Mobile Network Compatible
Support 5G NSA+SA, 4G LTE-TDD+LTE-FDD, 3G WCDMA mobile networks;
Compatible global bands, support all SIM cards
Plug and play but more powerful
Plug and play, no wiring, can be installed anywhere in the room, keep the room tidy;
Compared to 5G hotspot, this 5G CP E is allow 50+users to access and enjoy the high speed, more powerful
5G through put is more than 750Mbps,almost 10x faster compared 4G network
It is 750Mbps+ when tested in Quectel office, 680Mbps in Kazakhstan, 562Mbps in our office, nearly 150Mbps higher than some famous branded 5G CP E.
The latest 802.11ax Wi-Fi6 standard, the wireless speed is 1800Mbps
Combined 2.4G and 5.8G SSID together, 5.8G first, allow users connect to the fastest wireless signal always
Better Signal, more wireless range
There is large space on the housing to install the 5G and Wi-Fi antenna, more gain and less interference; More than 150Mbps data rate in 35 meters distance with one wall;
Standing design, beautiful and generous appearance, comfortable hand feel, easy operation
Multiple application environment
Support VPN L2TP/PPTP, easy to achieve VPN remote control;
Besides home use, this 5G CP E is publicly used in office, banks, chain stores, outdoor camping etc.
Product Parameters

Hardware Spec:
Model	KS-5G-XM530
WiFi Standard	IEEE 802.11b/g/n/ac/ax
CPU	MT7621DAT+MT7905N+MT7975DN
Flash	16MB
Memory	256MB DDR3
Frequency	2.4G: 2400 - 2484MHz
	5.8G: 5150 - 5850MHz
Data Rate	600Mbps @ 2.4GHz; 1200Mbps @5.8GHz
RF Power	≤ 21dBm
Access Users	100+ Clients
Interface	2* 10/100/1000Mbps LAN (Optional: 1*RJ11 port optional to support VoLTE, 1*10/10/100/1000Mbps LAN port)
	1*10/100/1000Mbps WAN
Button	Reset button
	WPS Button
SIM	1*SIM card slot for 5G SIM card
Switch	LED Switch
LED Indicator	4G
	5G
	WIFI
	Power
	ETH
Antenna	Build in 5dBi MIMO Antenna
Power Consumption	<20W
DC Power Supply	12V/2A
MTBF	≥52,560H
Working temperature	Working Temperature:-20ºC~55ºC
	Storage temperature: -30ºC~70ºC
Humidity	5%~95%
Dimensions	108mmX108mmX216mm
4G/5G Speed
5G Chipset	Qualcomm X62 (Global Version)
4G/5G Band	5G: SA &NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; LTE-TDD: B34/B38/B39/B40/41/B42/B43/B48 WCDMA:B1/B2/B4/B5/B8/B19
4G/5G Speed	NSA TDD: Max. 3.4Gbps(DL)/550Mbps(UL); SA TDD: Max. 2.4Gbps(DL)/900Mbps(UL); LTE: 1.6Gbps(DL)/200Mbps(UL);UMTS: DC-HSDPA:42Mbps(DL) DC-HSUPS:5.76Mbps(UL);
5G Chipset	Qualcomm X62 (Europe/Middle East/Brazil/Africa Version)
4G/5G Band	5G: SA &NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78 LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71; LTE-FDD: B38/B40/B41/B42/B43; WCDMA:B1/B5/B8
4G/5G Speed	NSA TDD: Max. 3.4Gbps(DL)/550Mbps(UL); SA TDD: Max. 2.4Gbps(DL)/900Mbps(UL); LTE: 1.6Gbps(DL)/200Mbps(UL);UMTS: DC-HSDPA:42Mbps(DL) DC-HSUPS:5.76Mbps(UL);
Firmware Features
Operation mode	Router/5G
Multiple Functions	2.4G SSID and 5.8G SSID combined together, support 5.8G first always
	Support SSID hidden
	Support SMS, Phone book, QXDM tool
	Support DDNS
	Support Guest Network and Parental Control
VPN	VPN Client (L2TP PPTP)
Security	Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3
TR069	Support
IP Protocol	IPv4/IPv6
Device Management	GUI web management
	Support firmware back-up, restore, reset, upgrade
Packing List	KS-5G-XM530*1 Power adapter×1(12V2A) Cat 6 LAN Cable×1(1 meter) User Manual×1

Detailed Photos
Packaging & Shipping 12PCS/CTN
Weight: 9.6KGS/CTN
CTN size: 59*50*23cm
After Sales Service 12PCS/CTN
Weight: 9.6KGS/CTN
CTN size: 59*50*23cm

FAQ Q1. 5G bands:
A: Right now it can support global bands or locally bands;
We suggest to select the one which can meet with local bands as samples;
In the mass orders, we can customize the 5G bands if QTY large to save cost and increase the quantity;
Q2. OEM & ODM service
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package;
Content will be limited by MOQ;
ODM: we can provide PCBA, housing and firmware ODM service:
PCBA: 2~3 month to finish it;
Housing: 2 month after finish the PCBA;
Firmware: we can provide the open source driver for customer to develop their firmware;
We can provide DTS files if want;
And we can provide technical support in customer firmware development.
Q3. If support out of China production:
A. Yes, this is developed by our engineers, we can support SKD and CKD;
We can provide the SOP of assemble and finished product testing;
But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem;
We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.
