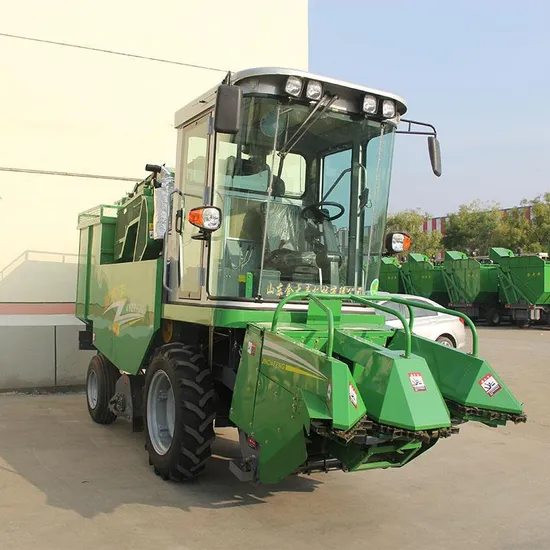

4YZP-2C 2row Super Quality Corn Maize Combine Harvester Machine Price

Product Description

Super Quality Corn Harvester Price/Small Rice CombineHarvester/maize harvest machine
Characters Well-adapted: 2 rows cutter header not subject to planting space and operation of incorrect line; Hydraulic lift cutting platform can adjustment at any time according to the height of the ear, to achieve the best effect; Good performance: 12 rollers peeling machine, peeling performance is good and grain loss less; large diameter of returning machine knife shaft , straw chopped effect is good; The newly optimized bracts conveying device and the bract pulverizer to make the returning operation more complete. High efficiency: 6.0 meters short body design, small turning radius; Big hydraulic design granary, fewer unloading and increase effictive work time High reliability: Big gearbox + reduction of the loop box, carrying capacity is strong; The main clutch adopts double lining , long service life; grain elevator adopt 38 pitch chain, strong transmission capability and high reliability; The machine design reasonable in science, good in coordination, small in fuel consumption, small in noise and easy to repair. Operation comfortable: Configuration luxury circular cab, vision is more open; Configure reverse image system easy to control the vehicle situation;
Technical specification:

Main Performance
Loss Rate	≤4%
Grain Broken Rate	≤1.0%
Impurities Rate	≤1.5%
Work reliability Bract stripping Rate	≥85%

Technical specification sheet
Modle	4YZP-2C
Type	Wheel self-propelled
Rows of cutter	2
Width of Cutting	1360 mm
Application row width	580-780 mm
Cutting center distance	680 mm
Productivity	0.2-0.3 hectare/hour
Total Weight	4200Kg
Working Dimensions(L×W×H)	6040 ×1940 ×3050 mm
The model of engine	YC4DK105-T304
Engine	Diesel engine
Power	110HP
Oil consumption	≤40kg/ hectare
Rated speed	2400 r/min
Gear-box	Mechanical (3+1)*2
Steering	Hydraulic
Minimum ground clearance	260mm
Unloading grain height	1925mm
Unloading type	Hydraulic
Minimum turning radius(L-R)	6950mm
Wheel track front/wheel track rear	1340-1260mm
wheel base	2450mm
Working Speed	2.00~6.0Km/H
Oil tank	200L
Grain tank	1400L
Straw returning machine	1300mm
