Basic Info.
Nominal Voltage
220V, 380V
Hazardous Area
Zone1, Zone2
Guoup of Gas or Vapoour
Iia, Iib, II C
Degres of Protection
IP65
Thread of Inlet and Outlet
G3/4"~G11/2”
Standard
European Standard, American Standard, British Standard, Germany Standard, South African Standard, Italian Standard
After-sales Service
1 Year Warranty
Interface Type
1p+N, 3p+N, 1p+N+E, 3p+N+PE, Wf2
Production Capacity
50000set/Month
Product Description

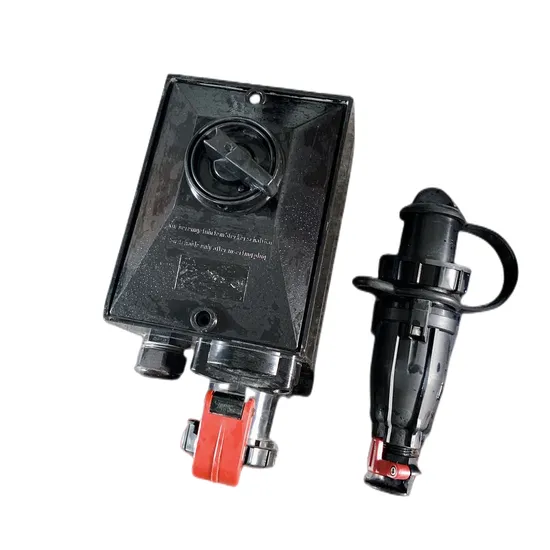

Product Description Explosion-proof plug is composed of plug and socket. The shell is made of die-cast aluminum alloy. The socket is connected to the power supply end, and the plug is connected to the electrical equipment end. toggle switch. Explosion-proof plugs are divided into explosion-proof flameproof plugs and sockets and explosion-proof flowerless plugs
Explosion-proof plugs are composed of plugs and sockets, and are mainly used in chemical industry, various mines, petroleum, and places where explosion-proof is required. And subdivided into single phase. For lighting, three-phase, for machine tools and other places.
Applications
1.A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2.Areas requiring frequent on-and-off of lights or power cycling- no warm up time required 3.Areas with high energy costs 4.Typical applications include: Oil and gas industries Chemical, petrochemical Pharmaceutical industries Pulp and Paper Waste and sewage treatment Standard Materials
Glass fiber reinforced unsaturated polyester resin pressed or welded with high-quality stainless steel
Housing: GRP Exterior: Stainless steel Detailed Photos
First, look at the exterior. If you don't look closely, you might think that all explosion-proof sockets look similar, at most only slightly different in color. In fact, a uniform appearance can reflect the quality of the material. Crude sockets are mostly made of poor materials.
Second, look at the structure. It mainly depends on the internal cable and interface material. If the metal material is rusty or has poor conductivity, it is of poor quality. Please do not buy.
Third, look at security. In the process of using the explosion-proof socket, if it is not tight enough, it is easy to cause safety problems.
Product Parameters
Type | Plug & Receptacle |
Ex rate | Ex d e IIC T6 Gb |
Rated Current [A] | 16A | 32A | 63A |
Rated voltage | 220/380VAC |
Degree of protection | IP65 |
Entries | M25*1.5 (suitable for Φ8mm-Φ17mm cable) | M40*1.5 (suitable for Φ13mm-Φ27mm cable) | M40*1.5 (suitable for Φ13mm-Φ27mm cable) |
The cable for plug | Φ8mm-Φ19mm | Φ12mm-Φ28mm | Φ12mm-Φ28mm |
Installation Instructions
Related products
Certifications
FAQ
1. How can we guarantee quality?Always a pre-production sample before mass production.Always final Inspection before shipment.We offer 2-5 years warranty to our products.2.Do you have any MOQ limit for light order?MOQ, 1pc for sample checking is available.3. Can you accept put my logo on light product?Yes. Please inform us formally before our production and confirm the design firstly based on our sample.4.What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW.Accepted Payment Currency: USD,GBP,CNY.Accepted Payment Type: T/T,L/C.Language Spoken: English,Chinese5.WarrantyA: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,during the guarantee period, we will send new lights with new order for small quantity. All products have been tested before the shipment and it was packaged in good condition.For defective batch products, Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.
