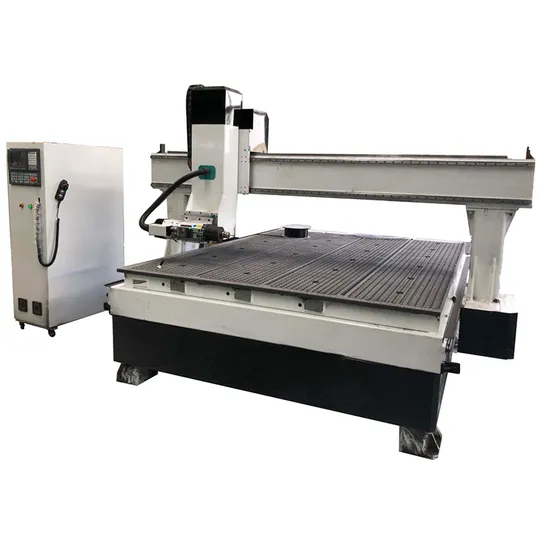

4 Axis Spindle Moving Auto Tool Changing Woodworking CNC Router

Product Description

Machine feature:
1.when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with T-shape thick steel
3. Equipped with 9kw Italy HSD air cooling spindle can move 0-180 degree, it can engrave the bending material by moving spindle.
4. The auto oiling system, just pushing the handle then can realize the whole machine oiling, very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Taiwan SYNTEC control system with industrial control panel.
7. Taiwan HIWIN square guide rail with 30mm diameter, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table, more stable when engraving wood doors.
9. Japanese YASKAWA servo motor and drivers.
10. Function of re-carving after break point and power off, reducing the m
aterials wasting.
11. Good software compatibility, all kinds of CAD/CAM, such as Typ3, ArtCam, Castmate, UcanCam, Artcut engraving software, Coredraw, etc.
Main Configuration:
1) Working area: 1300mm*2500mm*300mm
2) Vacuum adsorption table with 5.5KW vacuum pump
3) Cast steel structure thicken to 8mm
4) SYNTEC controller system
5) YASKAWA Servo motors and drivers
6) 9.0 kw HSD ATC spindle can move 0-180 degree
7) Auto tool change with 8-20 pieces tools
8)Automatic oiling system
9) Taiwan PMI/HIWIN square guide rail with 30mm diameter
Application:
1) Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2) The wood products: Voice box, game cabinets, computer tables, sewing machines table, instruments.
3) Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antibate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Specification

Description	Parameter
	ZK 1325	zk1530	Option
Working Area (X*Y*Zmm)	1300x2500x300mm	1500X3000X300	According to demands
Max Moving Speed	60000mm/min
Max Engraving Speed	25000mm/min
Frame	Welded Steel
Spindle Power Motor	Italy 9KW air cooling spindle	Optional other China brand
Spindle Speed	12000-24000rpm
The number of knife	6pcs/8pcs/10pcs/12 pieces/20 pieces	According to demands
The manner to change knife	Circular disk	Option: In-line
XYZ traveling positioning accuracy	±0.04/300mm
XYZ repositioning accuracy	±0.04mm
Working Voltage	AC380V/50/60Hz,3Ph
Drive Motors	Servo Motors and Drivers
Command language	G code,HPGL
Operating system	LNC control System
Interface	USB
Flash memory	128M(U Disk)
Software Compatability	Type3,Ucancam, Artcam Software
Diameter of tools	Φ3.175,Φ6, Φ12.7
Running Environemt	Temperature: 0°C~45°C
	Relative humidity: 30%~75%

Technical Support:
1. Warranty & Aftersales service:
A)warranty is 1 year
B)24 hour technical support by email or calling
C)User-friendly english manual for machine using and maintaining
2. Rationalization of pre-sales consulting
If you have special requirements, of course, we can customize the machine according to your requirements to suit your needs.
