Manufacture Selling Ultraviolet Light for Aquarium Waterproof UV Lamp

Product Description

Description

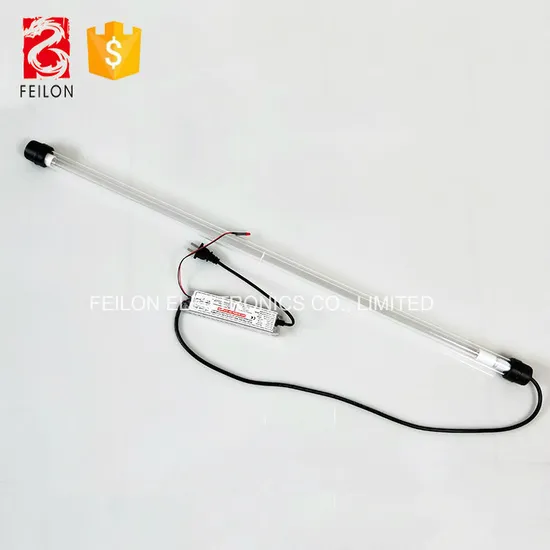

The submersible germicidal lamp adopts a well-designed ballast in the quartz tube, which can be perfectly matched with the lamp tube. The natural heat dissipation from the water outside the tube can keep the lamp in the working state and output stable high-intensity ultraviolet radiation, which makes the product life longer. Other products with the same specifications are extended by 20%, UV radiation is enhanced by 15%. New waterproof design: The integrated silicone waterproof head has multiple sealing of the pipe body, which not only has good waterproof performance but also convenient disassembly and assembly, and the traditional hard plastic head Compared with the new type of silicone waterproof head, it is more resistant to ultraviolet light, and its soft material is not easily damaged by collision. The hard plastic head after excessive ultraviolet irradiation is prone to cracking, which not only affects the appearance but also affects the safety, so that the product cannot be used any more.
UV germicidal lamps with different bases, diameters, and lengths are available, which offer excellent efficiency. We supply two types of UV lamps, emitting UV-C wavelength at 253.7nm, ozone-free; while emitting UV-C wavelength both at 253.7nm and 185nm, ozone-generating.
Specification

Lamp Type	Tube Diameter	Lamp Length	Lamp Power	Lamp Current	Lamp Voltage	254nm UV output@1M	Average Life
	mm	mm	W	mA	V	μw/cm³	Hours
ZW10D15W-Z212	15	212	10	425	22-39	21-24	8000
ZW14D15W-Z287	15	287	14	425	28-39	31-35	8000
ZW15D15W-Z303	15	303	15	425	30-40	33-37	8000
ZW17D15W-Z356	15	356	17	425	34-46	48-54	8000
ZW23D15W-Z436	15	436	23	425	40-55	62-69	8000
ZW28D15W-Z550	15	550	28	425	51-69	85	8000
ZW37D15W-Z793	15	793	37	425	78-101	110	8000
ZW40D15W-Z843	15	843	40	425	81-99	120-130	8000

UV Ballast Voltage

110VAC/220VAC

Application
Pure water, domestic water, ionized water, medical water and various water disinfection;
Water treatment equipment, aquarium equipment, air and object surface disinfection;
Photos
