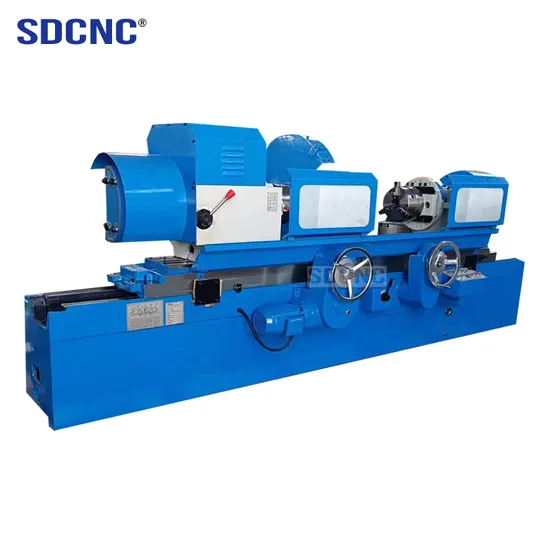

Sdcnc Heavy Duty Crankshaft Grinding Machine M8260*2000 for Engine Repair
| US$18,500.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M8260
Type
External Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Grinding Machine Manufacturer M7180 Hydraulic Surf
Wheel Size(mm)
120 X 110 X 360
Power (Kw)
9.5kw
Keywords
Precision Crankshaft Grinding Machine
Transport Package
Wood Packing
Specification
3600x2100x2130
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
3600.00cm * 2100.00cm * 2130.00cm
Package Gross Weight
7500.000kg
Product Description
The main performance characteristics: The screw rod of the machine tool is made of special alloy steel through strict processingand heat treatment technology.Grinding head vertical rapid lifting, improve production efficiency.The grinding head lateralmovement driven by hydraulic motor, which can also be manually.The lifting mechanism and the triangle bracket adopt eccentricdesign, which is easy to adjust, and greatly prolong the service life of the machine tool. Application: Applicable to all kinds ofprocessing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can be made ofgrinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:
| Specifications | Unit | Parameter |
| Max. swing Dia. | mm | 600 |
| Dia. to be ground | mm | Max. 300 Min. 100 |
| Radius of crankpin | mm | Max. 160 Min. 0 |
| Radius of crankpin | mm | 150 |
| Center height | mm | 420 |
| Max. Grinding Length | mm | 1200~ 3750 |
| Max. weight of work | kg | 400 |
| Workhead center tapered bore | | Morse #6 |
| Tailstock center tapered bore | | Morse #6 |
| Wheel spindle motor power | kW | 15 |
| Motor power of headstock and tailstock | kW | 5 |
| Guide-way dimensions: width x center distance | mm | For wheelhead : 120 x 110 x 360 |
| Max. diameter to be grinded by center rest | mm | Dia.100~300 |
| Max. diameter to be grinded by chuck | mm | Dia.100~300 |
| Auto measuring | | without |
| Suspension type measuring | | with |
| Auto feed and compensation | mm | 0.01 ~ 0.04 |
| Min. Manual feed | mm | 0.005 |
| Workhead sleeve travel | mm | 450 |
| Tailstock sleeve travel | mm | 450 |
| Machine size | mm | 5000x2100x2130 |
| Gross weight | kg | 7500 |
