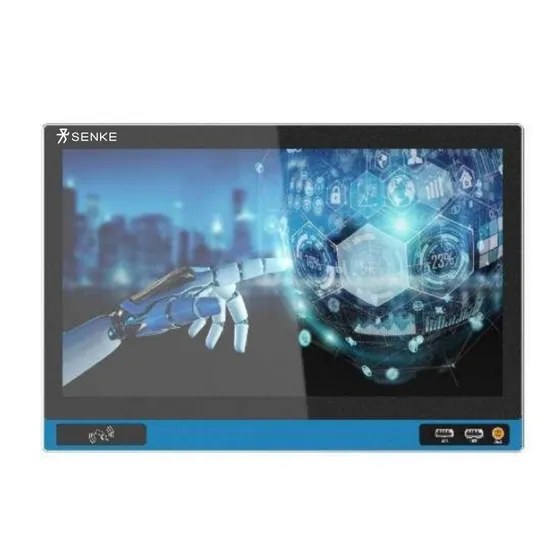

13.3 Inch Industrial Panel PC Touch Screen All in One

Product Description

Features
Senke Touch 13.3 Inch HMI All In One Computer Touch Product Overview
The industrial control all-in-one computer features a robust aluminum alloy front panel and cold-rolled steel sheet metal technology, complemented by an efficient fin-type heat dissipation structure. This design ensures the PC can thrive in diverse, challenging application environments.Equipped with a comprehensive array of professional interfaces, the machine meets the demands of standard application scenarios and allows for the integration of customized functions and interfaces tailored to specific needs.
Product Application Scope
Automation Control Terminal Edge Computing Terminal HMI Human Machine Interface MES System Execution Terminal Visual Inspection Terminal SOP Workstation

Basic parameters		Host Configuration
screen size	13.3 inches	Motherboard	DB01 series industrial motherboard
Resolution	1920*1080	processor	Intel i5-3317U
screen ratio	16:9 (H:V)	platform	Ivy Bridge
brightness	350 (Typ.)	Memory	DDR3 4G
Contrast	1000:1 (Typ.) (Transmission)	*** capacity	128G
Display Color	16.7M (6-bit + Hi-FRC)	Graphics	Integrated graphics: Intel HD Graphics 4000
Reaction time	30 (Typ.)(Tr+Td) ms	BIOS	1. AMI BIOS2. 64M SPI BIOS
Viewing angle	88/88/88/88 (Typ.)(CR≥10)	operating system	Windows 7
Dimensions	353.5*302*58.5mm	Host interface
Hole Size	353.5*302*58.5mm	DC Power Supply	1*DC IN Phoenix terminal
Touch Type	G+G capacitor	HDMI	1*HDMI OUT
working environment	0ºC-50ºC (10~90% without condensation)	USB	2*USB3.0,4*USB2.0
Storage environment	-20ºC-70 °C (10~90% without condensation)	COM	2*DB9-RS232/RS845 (optional) 4*DB9-RS232
Power Specifications	DC: 12VAC: 220V-60Hz	LAN	1* LAN/2* LANOnboard RTL 8111 Gigabit Ethernet
Material\Craftsmanship	Aluminum alloy, cold rolled steel plate	WIFI	2.4G (standard) / 5.0G (optional)
color	Silver Black	Audio	1*PHONE (output)
Installation	Embedded, wall-mounted, desktop	switch	1*Start switch + indicator light

Product Description
Company Profile
Welcome to Shanghai Senke Electronic Technology Co., Ltd. Founded in 2012, Senke is a leader in the touch and commercial display equipment sector. With branches in Guangzhou, Shanghai, Beijing, Nanchang, Xi'an, Hangzhou, Chengdu, and Hu'nan, we manage a sprawling factory and office space exceeding 10,000 square meters.
Our main product lines include teaching and conference integrated machines, touch inquiry machines, advertising machines, queuing machines, industrial control monitors, and various customized touch display equipment. These products are extensively used in schools, government agencies, enterprises, shopping centers, stations, banks, and factory production lines. Our commitment to quality and outstanding after-sales service has earned us widespread acclaim.
