Quality Assurance 4X4 Self-Loading Mobile Concrete Mixer for Nigeria (CAMEROUN/DRC)

Product Description

Currently, Topall is the only manfuacturer of 4*2 (SD680M model)and 4*4 (SD800M model) self loading mobile mixer in China, these two models are already exported to East Asia, South America and main market Africa(Nigeria, Cameroun, DRC, Kenya, South America, Tanzania).

Comparison	SD680M	SD800M
Drum	680L front tipping	800L , 180degree swivel tipping(front, left/right)
Bag of cement 50kg	Mixing 1.5bags cement per time	Mixing 2bags cement one time
Unmixed capacity	350L	560L
Mixed capacity	200L	350L
Driving	4*2	4*4
Tyre	Front 750-16 Rear 500-15	Four wheel 10-16.5
Self loading shovel	100L	100L
Water pump	/	1.5inches water pump and water meter, water tank and clutch
Chassis	Robust and sturdy built frame	Articulated frame
Diesel engine	Yanmar 1105, 13.2kw, electric start	YM1115PM1, 16kw, electric start
Gear box	Heavy duty, 3forward+1reverse	Heavy duty, 4forward+1reverse
Steering & Tipping	Hydraulic	Hydraulic
Size (mm)	3400L1600W2400H	3500L1500W2500H
Weight	1500kg	2770kg
Container loading	1*20ft loads 2units	1*20ft loads 2units

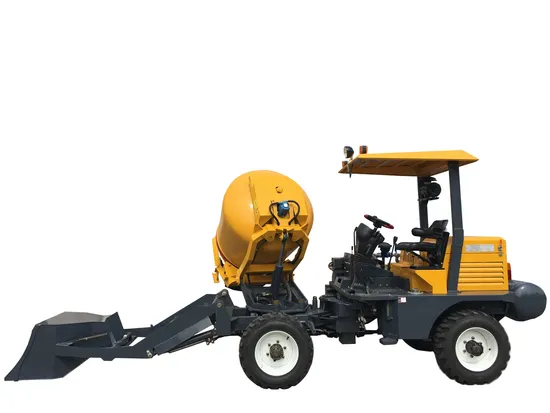

Self Loading Mobile Concrete Mixer

Features
1. When it comes to productivity, mobile concrete mixer can be depended for increased mixing capacity on site. A single person can handle overall management of shifting the equipment, loading appropriate proportion of ingredients and monitor the blending operation.
2. Types of Construction Projects where Self Loading Mobile Concrete Plant can be applied
3. A variety of construction projects can be done by reducing the cost in concrete mixing to a great extent. Projects including housing and commercial projects, to roads, bridges, trenching, etc can be managed cost effectively with concrete mixer.
4. Topall-The Right Place to Find Technically Advanced Concrete Solutions
5. Topall supplying exclusive concrete equipments. Our 4×2 or 4×4 self-loading concrete blender is equipped with reliable and fast technology including 180 drum slewing, front cab, shovel that closes by hydraulic mechanism, electronic weighing method, etc.
6. Conclusion: Self stuffing Concrete mixer is a revised option available today that supports for easier and faster construction activities.
