Automatic Pet Bottle Blowing Machine/Pet Bottle Production Line

Product Description

Product Description

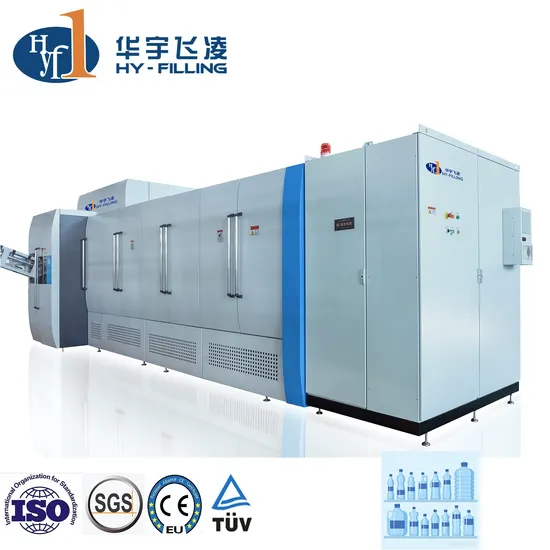

The full automatic rotary stretch blow molding machine is widely used for the blowing plastic container (including hot filling bottle), suitable for the product of water, carbonated beverage or cold bottles.
With the structure of multi-mold in one machine, can complete the actions of preform unscrambling, preform feeding, heating, feeding, stretch, blowing, cooling and bottle conveying etc full automatically. The main components on the machine are of international famous brand. The machine owns the advantage of high automation, reliable and stable operation and low power consumption. Details Images
Auxiliary Machines
1.Water treatment
Water treatment is equipped for pure water, mineral water, and water used in beverage drink. It contains RO, natrium filter, ultra filter, activated carbon filter, ion exchanger, ozone processor etc.
2.Bottle Blowing Machine
Divided into: semi-automatic bottle blowing and full automatic bottle blowing machine.
Suitable for: PET bottle.
Bottle size: 200ml-2L
3.Filling Machine
The machine is combined with rinsing, filling and capping, which special designed for PET bottled. It is stable characteristic, advanced technology, nice appearance and complete function.
4.Filled Bottle Conveyor System
Conveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
5.Packaging System
Customized: Sleeving Label Machine, Film Shrink-wrapping Machine, Palletizing machine, Date code printer etc.
Main composition
Main parts Brand Remark

PLC system	Siemens S7-300	Germany
Inverter	ABB	Sweden
Touch Screen	SIMENS MP-277	Germany
Main motor	S E W	Germany
Pneumatic part	FES TO	Germany
Power Adjustor	Carlo Gavazzi	Switzerland
Sensor	Carlo Gavazzi	Switzerland
Blow valve	Eugen Seitz	Switzerland
Gas & liquid seal ring	Trelleborg Quad-ring	USA
Button & Switch	SCH NEIDER	France

Electrical/Control components

Circuit Breaker	Sch neider	France
Miniature Relay	Sch neider	France
Contactor	Sch neider	France
Button	Sch neider	France
Photoelectric Sensor	Optex	Japan
Magnetic Sensor	Fes to	Germany
Touch screen	Weinview	Taiwan
PLC	Mitsubishi	Japan
Power switch	Meanwell	Taiwan
Positioning module	Mitsubishi	Japan
Servo motor	Mitsubishi	Japan
Servo amplifier	Mitsubishi	Japan
Heating module	Semi kron	Germany

Valves/Joints

Prime blowing valves	SMC	Japan
Second blowing	Parker	USA
Exhaust valves	Parker	USA
Action valves	SMC	Japan
Throttle	Fes to	Germany
Joints	Fes to	Germany
Cylinders	Fes to	Germany

Mechanical parts

Servo motor reducer	Nevgart	Germany
Chain	KMC	Taiwan
Linear Guides	Hiwin	Taiwan
