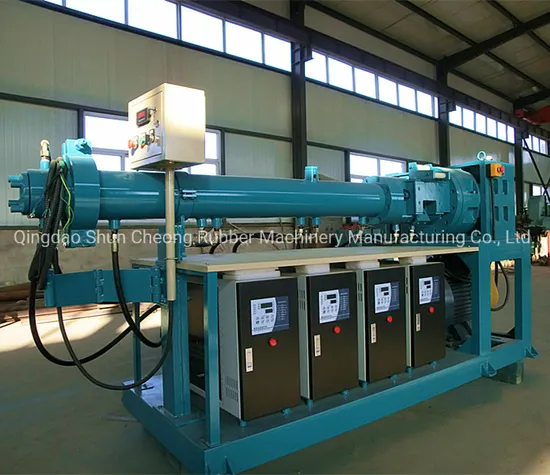

Cold Feed Rubber Extruder Machine

Product Description

Rubber Extruder Machine
Product Description
1. The Rubber Extruder Machine is used for extruding half-finished rubber products such as tire tread, rubber pipe, inner tube, cable and feeding rubber, etc.
2. The machine is heat-feed and single screw extruder. The rotation speed could be changed. With the head piece changing. We can get different filtering and rubber-covering of press plate of semi-product for constant outline. So the machine has many uses.
3. Our main products includes: Rubber product equipment, reclaimed rubber equipment, bias truck tyres equipment etc. We also have rubber mixing equipments such as Banburying Machine, Rubber Mixing Machine, Rubber Crusher, Refiner, Rubber Cutting Machine; Rolling equipments such as Calenders with two/three/four high mills, Linkage line, Placemat Finisher; Vulcanizing equipments such as Vulcanizing Press, Conveyer Forming Machine, Tyre Vulcanizer, Solid Tyre Vulcanizer, Flap Curing Press, Inner Tube Curing Press;
4. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
5. Qingdao Shun Cheong Machinery Co., Ltd. Your trusted partner.

Type	XJL-65	XJL-115B	XJL-120	XJL-150	XJL-200	XJL-250
Forms of screw and screw thread	Double-head equal-depth convergent type	Double-head convergent type	Double-head convergent type	Double-head unequal-depth convergent type	Double-head convergent type	Double-head convergent type
Screw diameter (mm)	65	115	120	150	200	250
Length-diameter ratio of screw(L/D)	4	4.8	4.6	4.43	4.35	4.5
Compression ratio		1.3		1.34
Rotary speed pf screw r/min	5.2-52	5.4-54	5.6-55.6	20-26	22.4-67.2	19.7-59.1
Motor power KW	Electromagnetic speed 7.5KW	Electromagnetic speed 22KW	Electromagnetic speed 22KW	Frequency control 55KW/ Motor commutator 8.3-55KW	25-75Motor commutator	Motor commutator 33.3-100
Production capacity kg/h	50-80	100-420	100-450	700-1200	1500-2200	2000-3200
Strean pressure(Mpa)	0.2-0.3	0.4-0.6	0.2-0.4	0.6	0.6-0.8	0.6-0.8
Cooling water pressure(Mpa)	0.2-0.3	0.2-0.3	0.2-0.4	0.2-0.3	0.2-0.3	0.2-0.3
Overall:L×W×H(mm)	1750×550×1100	2390×760×1450	2427×750×1330	3411× 814× 1470	4564×1800x1750	4950×1150×1483

Company Profile Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, Huangdao New District,Qingdao City.Who is a specializing in the production of rubber machinery of high and new technology backbone enterprises, the company passed the ISO9001:2015 quality management system certification, the European Union CE certification and Switzerland SGS certification.

Company's products mainly cover the following industry: tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.

The main equipment are: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer,etc.

Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine,Uzbekistan, Kazakhstan and so on,more than 50 countries and regions, has won the domestic and foreign customers praise and cooperation for years.Meanwhile,they also introduced new customers to cooperate.

Product quality and after-sales service is the key to survival of Qingdao Shun Cheong Machinery Co.,Ltd, and also are top priorities of management of the company, the company commitment to all customers as follows:

1. Every parts pass strict quality inspection before storage.

2. All the products overload trial running before shipment, such as Plate Vulcanizing Press,to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.

3. The whole body of all products are with free technical support.

4. The warranty period of 3 years for main parts, wearing parts for 1 year warranty.

5. The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.
Certifications

Our Service

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong Airport. We will pick up you at the airport.
