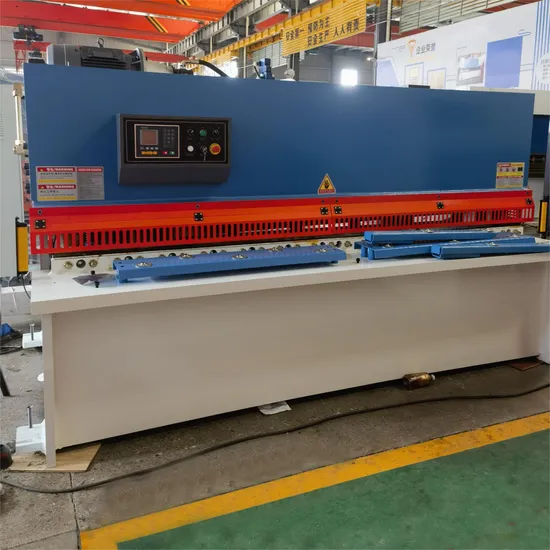

QC12K Hydraulic Swing Beam Shearing Machine CNC Sheet Steel Cutter with E21s
| US$4,400.00-7,400.00 | 1 Piece (MOQ) |
Basic Info.
Certification
ISO 9001:2000
Condition
New
Warranty
2 Years
Cutting Length
2500mm
Shearing Speed
10-12cuts/Min
Motor Power
5.5kw
Weight
3800kg
Transport Package
Cover with Plastic Film
Specification
3040*1610*1620mm
Trademark
Hycules
Origin
China
HS Code
8462299000
Production Capacity
50 Set/Month
Product Description
Product Feature
Standard Equipment
Optional Equipment
Details ImagesSwing Beam Shears Back Gauge System:
One of the most important factors for bending capacity is the design of the back gauge and stability. Quality cutting is possible with perfect product stability and precision back gauge.
The high-speed ballscrew back gauge system movement is also supported by linear guides, which helps the back gauge achieve long life and greater sensitivity and strengthens against any collisions.
| Backgauge use Ball Scrwe | Working Table | Back safety net |
| Electrics - France | Montor | Back safety net |
Product Parameters
| Type | Max Thickness (mm) <450N/mm2 | Max Thickness (mm) <700N/mm2 | Cutting Length (mm) | Throat Depth (mm) | Shearing Angle (°) | Blade Length (mm) | Shearing Speed (Cuts/min) | Back Gauge Specification Travel (mm) | Back Gauge Specification Speed (mm/sec) | Motor Power (kw) | Oil Tank Capacity (L) | Weight (kg) | L*W*H (mm) |
| 4x2500 | 4 | 2.5 | 2500 | 100 | 1°30' | 2600 | 10~12 | 600 | 180 | 5.5 | 220 | 3800 | 3040*1610*1620 |
| 4x3200 | 4 | 2.5 | 3200 | 100 | 1°30' | 3300 | 10~12 | 600 | 180 | 5.5 | 290 | 5000 | 3840*1610*1620 |
| 4x4000 | 4 | 2.5 | 4000 | 100 | 1°30' | 4100 | 8~10 | 600 | 180 | 5.5 | 290 | 6500 | 4600*1700*1700 |
| 4x6000 | 4 | 2.5 | 6000 | 100 | 1°30' | 6100 | 5~7 | 600 | 180 | 11 | 380 | 11000 | 6460*2100*3200 |
| 6x2500 | 6 | 4 | 2500 | 145 | 1°30' | 2600 | 10~12 | 600 | 180 | 7.5 | 220 | 5000 | 3040*1610*1620 |
| 6x3200 | 6 | 4 | 3200 | 145 | 1°30' | 3300 | 9~11 | 600 | 180 | 7.5 | 290 | 6000 | 3840*1610*1620 |
| 6x4000 | 6 | 4 | 4000 | 145 | 1°30' | 4100 | 8~10 | 600 | 180 | 7.5 | 290 | 8000 | 4620*1750*1700 |
| 6x5000 | 6 | 4 | 5000 | 145 | 1°30' | 5100 | 6~8 | 600 | 180 | 7.5 | 380 | 10500 | 5400*1750*1700 |
| 6x6000 | 6 | 4 | 6000 | 145 | 1°30' | 6100 | 5~7 | 600 | 180 | 11 | 380 | 16500 | 6480*2100*2300 |
| 8x2500 | 8 | 5 | 2500 | 300 | 1°30' | 2600 | 10~12 | 600 | 180 | 7.5 | 220 | 6000 | 3040*1700*1700 |
| 8x3200 | 8 | 5 | 3200 | 300 | 1°30' | 3300 | 8~10 | 600 | 180 | 7.5 | 290 | 7200 | 3860*1700*1700 |
| 8x4000 | 8 | 5 | 4000 | 300 | 1°30' | 4100 | 8~10 | 600 | 180 | 7.5 | 290 | 8800 | 4640*1700*1700 |
| 8x5000 | 8 | 5 | 5000 | 300 | 1°30' | 5100 | 8~10 | 600 | 180 | 7.5 | 380 | 11500 | 5400*2400*2000 |
| 8x6000 | 8 | 5 | 6000 | 300 | 1°30' | 6100 | 8~10 | 600 | 180 | 11 | 380 | 18000 | 6480*2100*2350 |
| 10x2500 | 10 | 6.5 | 2500 | 300 | 1°30' | 2600 | 9~11 | 600 | 180 | 11 | 320 | 7300 | 3040*1700*1700 |
| 10x3200 | 10 | 6.5 | 3200 | 300 | 1°30' | 3300 | 9~11 | 600 | 180 | 11 | 420 | 8000 | 3860*1700*1700 |
| 10x4000 | 10 | 6.5 | 4000 | 300 | 1°30' | 4100 | 8~10 | 600 | 180 | 11 | 420 | 12000 | 4650*2100*2000 |
| 10x6000 | 10 | 6.5 | 6000 | 300 | 2° | 6100 | 5~7 | 600 | 180 | 15 | 520 | 24000 | 6500*2100*2300 |
| 12x2500 | 12 | 8 | 2500 | 300 | 2° | 2600 | 9~11 | 600 | 180 | 18.5 | 360 | 9000 | 3140*2150*2000 |
| 12x3200 | 12 | 8 | 3200 | 300 | 2° | 3300 | 9~11 | 600 | 180 | 18.5 | 500 | 10800 | 3880*2150*2000 |
| 12x4000 | 12 | 8 | 4000 | 300 | 2° | 4100 | 8~10 | 600 | 180 | 18.5 | 500 | 13000 | 4680*2150*2000 |
| 12x5000 | 12 | 8 | 5000 | 300 | 2° | 5100 | 6~8 | 600 | 180 | 18.5 | 520 | 16000 | 5900*2150*2000 |
| 12x6000 | 12 | 8 | 6000 | 300 | 2° | 6100 | 5~7 | 600 | 180 | 18.5 | 600 | 29000 | 6900*2600*2700 |
| 12x8000 | 12 | 8 | 8000 | 300 | 2° | 8100 | 5~7 | 600 | 180 | 18.5 | 620 | 46500 | 9000*3500*3500 |
| 16x2500 | 16 | 10.5 | 2500 | 320 | 2°30' | 2600 | 9~11 | 600 | 180 | 18.5 | 360 | 11000 | 3140*2150*2000 |
| 16x3200 | 16 | 10.5 | 3200 | 320 | 2°30' | 3300 | 8~10 | 600 | 180 | 18.5 | 500 | 13000 | 3880*2150*2000 |
| 16x4000 | 16 | 10.5 | 4000 | 320 | 2°30' | 4100 | 8~10 | 600 | 180 | 18.5 | 500 | 16300 | 4650*2150*2200 |
| 16x5000 | 16 | 10.5 | 5000 | 320 | 2°30' | 5100 | 6~8 | 800 | 180 | 18.5 | 520 | 20000 | 5900*2600*2700 |
| 16x6000 | 16 | 10.5 | 6000 | 320 | 2°30' | 6100 | 5~7 | 800 | 180 | 22 | 550 | 36000 | 6900*2700*2700 |
| 20x2500 | 20 | 13 | 2500 | 320 | 3° | 2600 | 8~10 | 800 | 180 | 22 | 540 | 15500 | 3440*2300*2500 |
| 20x3200 | 20 | 13 | 3200 | 320 | 3° | 3300 | 8~10 | 800 | 180 | 22 | 800 | 18000 | 4150*2350*2700 |
| 20x4000 | 20 | 13 | 4000 | 320 | 3° | 4100 | 5~7 | 1000 | 180 | 22 | 800 | 21000 | 4850*2350*2700 |
| 25x2500 | 25 | 16.5 | 2500 | 320 | 3° | 2600 | 8~10 | 1000 | 180 | 37 | 800 | 19000 | 3200*2700*2900 |
| 25x3200 | 25 | 16.5 | 3200 | 320 | 3° | 3300 | 5~7 | 1000 | 180 | 37 | 800 | 23000 | 4200*2700*2900 |
| 25x4000 | 25 | 16.5 | 4000 | 320 | 3° | 4100 | 5~7 | 1000 | 180 | 37 | 800 | 27000 | 3850*2700*2900 |
| 30x2500 | 30 | 20 | 2500 | 320 | 3° | 2600 | 5~7 | 1000 | 180 | 37 | 800 | 23500 | 3300*2900*2900 |
| 30x3200 | 30 | 20 | 3200 | 320 | 3° | 3300 | 5~7 | 1000 | 180 | 37 | 800 | 27500 | 4200*2900*2900 |
