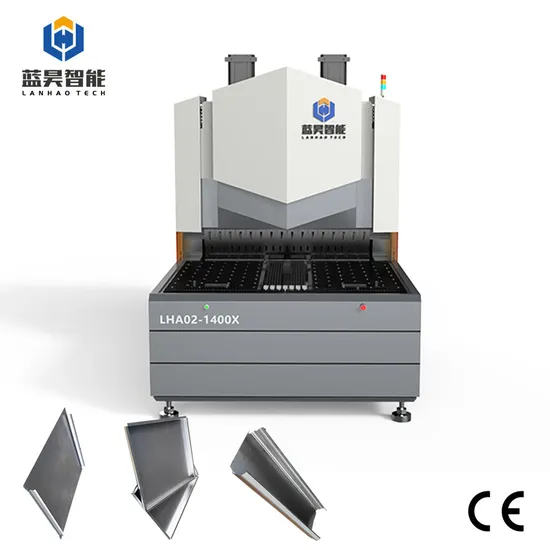

Fully Automation Intelligent Panel Bender

Fully Automation Intelligent Panel Bender

US$65,000.00-70,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LHA-1400X
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Transport Package
Pallet Packing
Specification
2500PC
Trademark
LANHAO
Origin
China

Product Description

Product Parameters
LHA-1400X-02 Technical parameters
Feeding structure Suction cup
Work table structure brush
System minimum accuracy 0.001mm
Max bending speed 0.2 second/time
Max feeding speed 90m/min
Max.bending width 1400mm
Max.Bending size L 1400mm X W1400mm
Max. Bending height 170mm
Min. Bending height 3mm
Min.arc radius 0.5mm
Rated power 380V
Total Motor power 34KW
Average power About 1.5KW
Noise About 50 dB
Machine size L 365cm X W 190cm X H 290cm
Total weight About 10 tons
User operating environment Win7 and above operating system
Max. Bending width UTS 520N/mm2 304 stainless steel 1.0mm
UTS 410N/mm2 cold panel 1.2mm
UTS 265N/mm2 aluminium panel 1.6mm
Min. Panel width 0.35mm
Four side forming min. Inner size About 140mmx210mm
Double side forming min. Inner size About 140mm
Bending angle 0-180 degree
Axis 9
Detailed Photos
Bending Cases
Certifications

Company Profile
Packaging & Shipping
