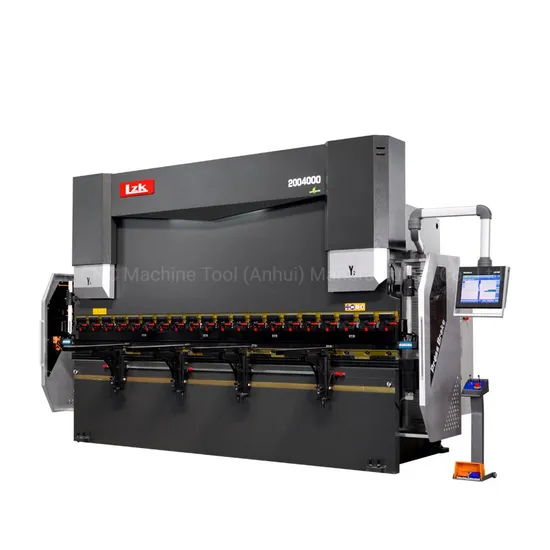

China Press Brake 200t4000 with Delem System
| US$8,900.00-40,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HPB 200T4000
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Carbon Steel, Mild Steel
Type
Press Brake
CNC Controller
Delem Da58t
Weight
13ton
Crowning
Mechanical Crowning
Axes
X, Y1, Y2, R and V Crowning
Pump
Sunny
Back Gauge
Ball Screw and Linear Guide Rail
Clamping
Quick Clamp
Valve
Rexroth
Main Motor
Servo Motor
Max Bending Length
4000mm
Max Bending Thickness
10mm for 4m Sheet
Transport Package
FCL or LCL, Covered with Plastic Film
Specification
4600X1950X3010mm
Trademark
LZK
Origin
Maanshan, China
HS Code
8462219000
Production Capacity
100 Sets/Month
Product Description
what is a cnc press brake| The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high. Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate. |
| DELEM DA58T CNC control system |
| Italy DSP Laser Protection |
| Automatic crowning table for high bending straightness |
| Sliding Front Support Arms |
| Quick Calmp, Easy Tool Changing. |
| Overall quenching process tool, high hardness and good wear resistance, with material of 42CrMo |
| Italy GIVI Grating Ruler |
| Main Electrics Components |
| Japan YASKAWA Servo Drive |
| Backgauge with Servo Motor |
| Double Guide Rails |
| Z1, Z2 axes are electrically controlled by the two black handle on the foot pedal |
| Energy saving type Servo Main Motor maintains high speed, long life and accuracy |
| Rexroth Hydraulic System |
| Nice Pipe Connection |
Our press brakes work well in customer's workshop
| German Customer |
| Russia Customer, manufacturer of Yacht |
