Dry Wet Pilot Trim Alarm Deluge Valve Price for Wholesale Distributor
| US$200.00-800.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
ZSFM
Alarm Valve Type
Deluge Valve
Automatically Opened and Closed Repeatedly
Can Automatically Opened and Closed
Open Fire Sprinkler System Type
Deluge System
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Dry Alarm Valve Type
Differential Type
Wet Alarm Valve Structure
Seat Type
Alarm Valve Diameter
2.5"Thru 10"/DN65 Thru DN250
Nozzle Flow Coefficient
115
Deluge Valve Type
Diaphragm Type
Product Name
Diaphragm Deluge Valve
Installation
Vertical&Horizontal
Finish
Externally Powder Coated
Medium
for Most Water, Seawater & Brackish Water Supplies
Connection
Flange X Flange / Groove X Groove
Rated Pressure
232psi/1.6 MPa/16 Bar
Listings and Approvals
Cccf,ISO9001, ISO14001
Application
Automatically Actuate Electric and/or Hydraulic Al
OEM
Workable
Transport Package
Wooden Case
Specification
65*50*50
Trademark
FOREDE
Origin
Fujian, China
HS Code
8481804090
Production Capacity
500sets/Month
Product Description

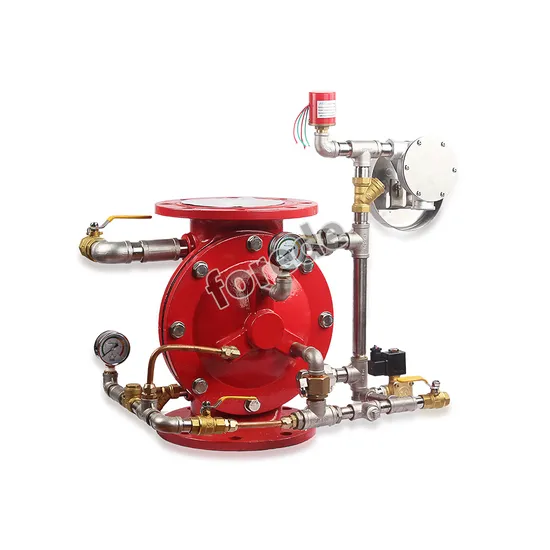

Product Description ZSFM Fire Fighting Diaphragm Deluge ValveDeluge Valve,External Resetting Diaphragm Style - 2"thru 12". Deluge Valves are diaphragm type valves designed for vertical installation for fire protection system service. they are used as "automatic water control valves" in deluge, preaction, and special types of fire protection systems such as foam-water systems. When properly trimmed, the Valves provide actuation of fire alarms upon system operation. Specification
| Material | |||
| 1.Drain Valve(NC) | Brass | 11.Water Motor Gong | DI/SS |
| 2.Deluge Valve | DI/SS | 12.Ball Valve | Brass |
| 3.Inlet Gauge | Brass/SS | 13.Manual Valve | Brass |
| 4.Non-Return Valve | Brass | 14.Ball Valve | Brass |
| 5.Re-Set Valve | Brass | 15.Solenoid Valve | Brass |
| 6.Pressure Switch | Brass | 16.Elow | Galvanized Pipe/SS304 |
| 7.Y Strainer | Brass | 17.Tee Fitting | Galvanized Pipe/SS304 |
| 8.Chamber Gauge | Brass/SS | 18.Drain Valve | Brass |
| 9.Drain Valve | Brass | 19.Y Strainer | Brass |
| 10.Cooper Pipe | Red Cooper | 20.Union Coupling | Galvanized Pipe/SS304 |
| Technical Data | |||
| 1.Available sizes | 2"thru 12"/DN50-DN300 | 5.Installation | Vertical |
| 2. Finish | Externally powder coated | 6.Features | External resetting |
| 3.Medium | For most water | 7.Connection | Flange /Groove |
| 4.Rated Pressure | 232Psi/1.6 Mpa/16 Bar | 8.Approvals | CCC,ISO9001, ISO14001 |
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
