off Grid Wind and Solar Power Controller for 2kw Wind Generator and 2kw Solar Panels

Product Description

Product Description
Off-Grid PWM Wind Solar Hybrid Controller - Product Description
Off-Grid PWM Wind Solar Hybrid Controller
FKJ-B Model
Product Characteristics
The Off-Grid PWM Wind Solar Hybrid Controller FKJ-B model is manufactured according to the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard, meeting users' technical requirements.
Featuring a big LCD display, this hybrid controller provides clear visual representation of the working state. It displays real-time data for wind turbine voltage, current, and power; solar panel voltage, current, and power; as well as battery group voltage and charge current.
Equipped with two sets of control systems, including a PWM constant voltage system and a three-phase dump load system.
In strong or super-strong wind conditions, the PWM control ensures the battery is charged by the wind turbine with constant voltage and current.
In case of battery disconnection or damage, the three-phase dump load system will automatically start to prevent the wind turbine from idling and running away.
Includes various protection functions for the battery, such as polarity reverse protection, disconnection protection, and damage protection.
Provides over-charging protection for the battery. When the battery is full, the three-phase dump load system will work, causing the wind turbine to brake and stop charging the battery.
Enables auto recharging of the battery. When the battery voltage reduces to 108% of the rated voltage, the three-phase dump load system will automatically stop and recharge the battery.
The controller is equipped with a manual brake switch that allows for the forced activation of the three-phase dump load system.
Includes a surge arrester inside the controller to protect the wind turbine from overvoltage and direct any strong lightning current into the ground, preventing equipment damage.
Additional Features and Options
The solar panel control system is optional and can be added based on customers' requirements.
Optional diesel generator port allows for automatic control of the generator's start and stop functions.
Supports Modbus Communication protocol, facilitating secondary development.
Technical specifications can be adjusted via RS485, providing convenience for professional customers to adjust the controller for different wind turbines.
Supports WIFI and GPRS, allowing customers to monitor the real-time working state of the on-grid wind power system via PC and mobile devices, as well as query historical working states. Compatible with both Android and OS platforms on mobile devices.
Can be equipped with various brake functions, such as mechanical yawing, rotate tail control, furled empennage, mechanical brake, hydraulic brake, electromagnetism brake, and more, to suit different wind turbine models.
For more information, please contact Jinan Deming Power Equipment Co., Ltd.

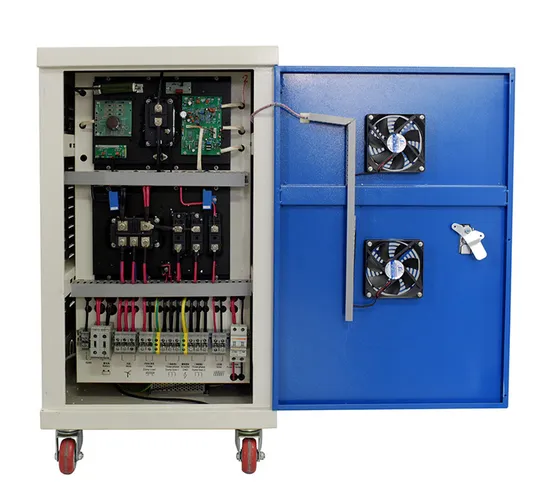

Detailed Images Detailed Photos
Product Parameters
Introducing the Off Grid Wind and Solar Power Controller for 2kw Wind Generator and 2kw Solar Panels by Jinan Deming Power Equipment Co., Ltd. This hybrid controller combines wind and solar power to efficiently charge your batteries. Perfect for off-grid applications, it ensures reliable and sustainable energy supply. Get the best of both worlds with this advanced controller.

Type	5KW-48Vdc	5KW-96Vdc	5KW-240Vdc
Wind turbine rated power	5KW	5KW	5KW
Wind turbine max. power	10KW	10KW	10KW
* Solar panel power	1.5KWp	5KWp	1.5KWp
Battery	48Vdc	96Vdc	240Vdc
Function	Rectifier,charge, control, *DC output
Automatic protection function	Over voltage protection, constant voltage charge, arrester
Manual function	Manual brake
Display mode	LCD+LED
Display content	Wind turbine voltage, current, power; solar panel voltage, current, power; battery voltage, charge current
PWM constant pressure voltage	>58Vdc	>112Vdc	>290 Vdc
Wind turbine 3-phase dump load voltage	60±1Vdc	120±2Vdc	300±5Vdc
Wind turbine recharge voltage	54±1Vdc	108±2Vdc	280±5Vdc
*Solar control stop charging voltage	60±1Vdc	120±2Vdc	300±5Vdc
*Solar control recharge voltage	54±1Vdc	112±2Vdc	280±5Vdc
*Diesel generator starting voltage	40±1Vdc	80±2Vdc	200±5Vdc
*Diesel generator off voltage	54±1Vdc	108±2Vdc	270±5Vdc
Self-provided battery connecting wire	>20mm²	>10mm²	>6mm²
PWM fuse	125A	80A	32A
*Solar fuse	40A	80A	10A
Charging fuse	160A	100A	40A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)IP65 (Outdoors)
Cooling method	Forced air cooling
*Extral Control function (optional)	Yawing, variable pitch, mechanical brake, hydraulic brake, electromagnetism brake
*Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet
*Temperature compensation (optional)	-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C
Controller Size (mm) Weight (kg)	580*400*240 23Kg	510*360*240 17Kg	510*360*240 17Kg
Dump load Size (mm) Weight (kg)	600*450*380 28Kg	600*450*380 28Kg	600*450*380 28Kg

FKJ-B (PWM) Off-Grid Wind Solar Controller 5KW
Above parameter is provided as a reference and can be customized to suit user specifications.
Technical Parameters:
Company Name: Jinan Deming Power Equipment Co., Ltd
Model: FKJ-B
Type: Off-Grid Wind Solar Controller
Capacity: 5KW

Type	5KW-48Vdc	5KW-120Vdc	5KW-240Vdc
Wind turbine rated power	5KW	5KW	5KW
Wind turbine max. power	10KW	10KW	10KW
Solar panel power	1.5KW	1.5KW	1.5KW
Battery	48Vdc	120Vdc	240Vdc
Function	Rectifier,charge, control
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current
PWM constant pressure voltage	>56Vdc	>135Vdc	>280 Vdc
3-phase load voltage of the wind turbine	58±1Vdc	145±2Vdc	290±5Vdc
Wind turbine recovery charging voltage	54±1Vdc	135±2Vdc	280±5Vdc
Solar controller stop charging voltage	58±1Vdc	145±2Vdc	290±5Vdc
Solar restore charge voltage	54±1Vdc	135±2Vdc	280±5Vdc
Low-voltage of the battery	40±1Vdc	100±2Vdc	200±5Vdc
Self-provided connecting wire of the battery	>20mm²	>10mm²	>6mm²
PWM fuse	125A	63A	40A
Solar fuse	32A	16A	10A
Charging fuse	160A	63A	50A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling
*Communication interface (optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation(optional)	-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C
Size of the controller	500*440*290 mm
Weight of the controller	21 Kg
Size of the load	660*510*450 mm
Weight of the load	31 Kg

Technical Parameters of Off Grid Wind Solar (Diesel) Hybrid Controller 2KW
Above parameters are provided for reference only.
This off-grid wind solar (diesel) hybrid controller, manufactured by Jinan Deming Power Equipment Co., Ltd, can be custom-made to suit user specifications. It is designed to meet the specific demands of users.
The controller has the capability to incorporate solar power control, based on user requirements.

Type	2KW-24Vdc	2KW-48Vdc	2KW-96Vdc
Wind turbine rated power	2KW	2KW	2KW
Wind turbine max. power	4KW	4KW	4KW
*Solar panel power	600Wp	2KWp	600Wp
Battery	24Vdc	48Vdc	96Vdc
Function	Rectifier, charge, control, *DC output
Automatic protection function	Over voltage protection, constant voltage charge, arrester
Manual function	Manual brake
Display mode	LCD+LED
Display content	Wind turbine voltage, current, power; solar panel voltage, current, power; battery voltage, charge current
PWM constant pressure voltage	>29Vdc	>58Vdc	>116Vdc
Wind turbine 3-phase dump load voltage	30±1Vdc	60±1Vdc	120±2Vdc
Wind turbine recharge voltage	27±1Vdc	54±1Vdc	108±2Vdc
*Solar control stop charging voltage	29±1Vdc	58±1Vdc	116±2Vdc
*Solar control recharge voltage	<29Vdc	<58Vdc	<116Vdc
*Diesel generator starting voltage	20±1Vdc	40±1Vdc	80±2Vdc
*Diesel generator off voltage	27±1Vdc	54±1Vdc	108±2Vdc
Self-provided battery connecting wire	>20mm²	>10mm²	>24mm²
PWM fuse	100A	50A	32A
*Solar fuse	32A	16A	10A
Charging fuse	125A	63A	40A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)IP65 ( Outdoors )
Cooling method	Forced air cooling
*Extral Control function (optional)	Yawing, variable pitch, mechanical brake, hydraulic brake, electromagnetism brake
* Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet
*Temperature compensation (optional)	-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C
Controller Size (mm) Weight (kg)	580*400*240 22 Kg	510*360*240 17 Kg	510*360*240 17 Kg
Dump load Size (mm) Weight (kg)	410*290*120 8 Kg	410*290*120 8 Kg	410*290*120 8 Kg

Jinan Deming Power Equipment Co., Ltd offers a customizable Off Grid Wind and Solar Power Controller for 2kw Wind Generator and 2kw Solar Panels. This versatile controller is perfect for managing your wind and solar power system efficiently.
