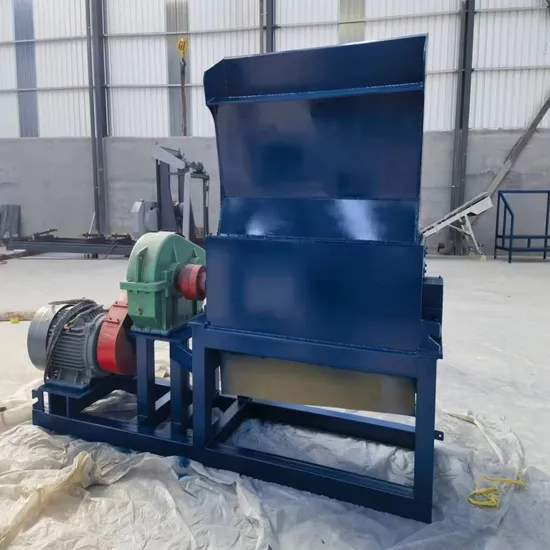

Wood Chip Crusher Pallet Chipping Machine

Product Description

Product Parameters
Wood Pallet Crusher
Popular and highly trusted in
Australia,Bulgaria,Bahrain,Guatemala,Italy,Mauritius,Malaysia,New Zealand,Netherlands,Qatar,UAE,USA,UK,Saudi Arabic,South Africa,Vietnam

Feeding Inlet	1350*230mm
Blade Shaft Diameter	450mm
Blade Quantity	16
Motor Power	37KW
Speed ratio of reducer	1:12.64
Capacity	60 Pallets/Hour
Packing	3220*1920*2200MM
Weight	3100KG

Related Machines



Pallet Dismantler
High Strength wear resistant cast saw wheel
Electric up and down the table
Board full down through the hole easily.
Frequency conversion speed adjustable main power to prolong the blade lifetime.
CE Approved and Technical Patent.

Table Width	1700MM
Table Length	1150MM
Cutting Thickness	5-150MM
Saw Wheel Diameter	600MM
Motor Power	7.5KW
USA Starrett Bi Metal Blade	6850*41*1.27MM
Weight	700KG
Overall Size	2800*1500*1700MM

Automatic Stringer pallet nailing machine

Model	1300
Wood pallet length	600- 1300mm
Wood pallet width	800- 1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	220V/ 2kw Servo motor
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second
Production effciency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P/ 4P
Weight	2000kg
Size	Host machine 1660*1970*2217mm Stacking 2945*2054*1410

American Stringer Pallet Nailing Bench

Model	1700	3400
Wood pallet length	600-1300mm	700-1500mm
Wood pallet width	800-1700mm	900-3400mm
Operational mode	Pneumatic operation	Pneumatic operation
Air pressure	0.8MPA	0.8MPA
Production Capacity	30-40pcs /h	20-30pcs /h
Number of beams	3/4	5/6
Weight	440kg	840kg
Size	2250*980*1900mm	4050*1050*2100mm

Euro Pallet Nailing Bench

Model	1600	3300
Wood pallet length	600- 1300mm	700-1500mm
Wood pallet width	800- 1600mm	900- 3300mm
Air pressure	0.8MPA	0.8MPA
Production capacity	30-40pcs /h	30-40pcs /h
Number of beams	3/4	5/6
Weight	650kg	950kg
Size	2400*980*1900mm	4000*980*1900mm

Semi-Automatic wooden pallet nailing machine

Model	1500
Wood pallet length	600-1300mm
Wood pallet width	800-1700mm
Feeding mode	Hand pull
Palletizing mode	Automatic
Operational mode	Pneumatic operation
Voltage	380V,480V or other
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Palletizing quantity	10P
Weight	2000kg
Overall dimension	3800*2200*2217mm
Package size	2500*2200*2500

Stringer Wood Pallet Notching Notcher Machine
Open groove the bottom beam of American wooden pallet
Easy to clean and maintain,High Safety,
Manual input the beam and auto Push the beam

Model	Single Head	Double Head
Power	15kw	30kw
knife	Alloy	Alloy
Capacity	600-800pcs/h	1800pcs/h
Beam length	1800mm	1400mm
Beam width	160mm	90mm
Beam thickness	40-60mm	40-60mm
Slot depth	<45mm	<45mm
Slot width	200-230mm	200-230mm
size	1200*1100*1200mm	2300*1300*1300mm
weight	400kg	1000kg

Company Profile

Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our wood pallet machine including:
Pneumatic Nailer (Manual/Automatic,Horizontal/Vertical)
Pallet Dismantling Machine
Pallet Crushing Machine
Pallet Chamfering,Stamping,Cutting,Turning,
Stacking,Conveyor
Pallet Notcher (Single Head/Double Head)
Pallet Boards Cutting,Milling,Stacking,
Block Machine (Crushing,Drying,Glue Mixing,Pressing,Cutting)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
