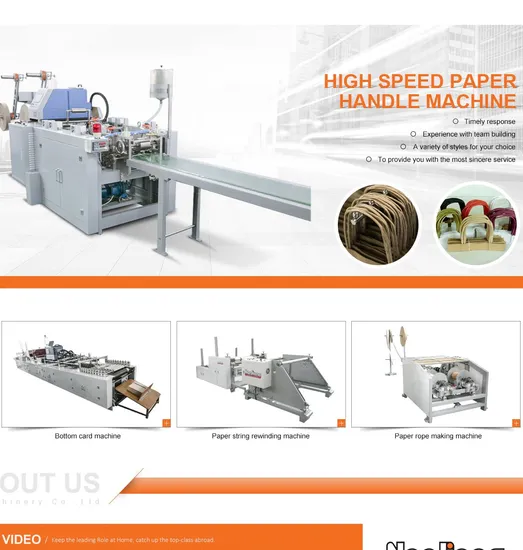

High Speed Twist-Rope & Flat-Belt Handle Making Machine (WFD100-1)

Product Description

This is a high-speeded machine for producing paper handles, it can paste the twist paper ropes in the middle of two pieces of thin paper board and then automaticall cut off them in separate, it is an ideal supporting machine of paper Handbag Making Machine.
This machine has extra option with long convey blet which will handle board with glue and could paste into bags directly by workers.
Technical parameter

Model	WFD100-1
Paper weight For handle	100-120g/m2;
Paper weight For belt	60-80g/m2.
Length of rope(belt) :	330-370mm or 380-420mm
Diameter of paper rope	3-5MM
Width of paper belt	10-12mm
Width of two paper roll	90-100mm
Speed	100-300pcs/min
Power Consumption	10KW
Machine dimensions	6000*1800*1800MM 18000*1800*1800MM(with extended conveyer belt)

Packaging & Shipping
Moisture-proof and shock-proof packaging + Steel frame + Container
The machine is firmly fixed on the bottom of steel frame.Comparing with wooden case packing,this kind of packing way can greatly protect machine from deformation.
Our Services
1 After-sales Service Provided:
Engineers available to service machinery overseas

2 Warranty:
Guarantee for one years; Lifelong maintenance
Exhibition
Certificate
FAQ
Q: Are you manufacturer or trading company?
A: We are the manufacturer and have our own workers and factories.

Q: Where is your factory located? May I have a visit?
A: First of all,warmly welcome!
We have two factories.One is located in Wuxi city, Jiangsu province,another is
located in XuYi county,Huaian city.Our Wuxi factory is very close to Shanghai city.

Q: Do you have machines in stock to sell?
A: No, we produce according to customers' requirements.

Q: How is the quality of your machine?
A: We are in this industry for about 20 years and regard quality as the life of the
enterprise.We choose the world famous manufacturers as our suppliers.And
besides,we have our own quality inspector.Machine parts are checked one by one
according to the drawings! Good quality and good after-sales help us obtain good
reputation in the international market! We have a technical team of seven person and
at the same time cooperate with other Research Institutes.
We are committed to providing customers with the best packaging machine.

Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper.
Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available.
Then we will recommend the right machine to you!

Q: Do you have related machine working VIDEO?
A: Yes,contact me please!
