Hose Reel Irrigation System Big Rain Gun Traveling Irrigator System

Hose Reel Irrigation System Big Rain Gun Traveling Irrigator System

US$4,000.00-79,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JP50, 65, 75, 90.
Power Source
Electricity
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Centrifugal Pump
Material
Metal
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CCC, CE, QS, GMP
Condition
New
Application Field
Agriculture
Qty of Spans
1-16
Span Length
48m, 54.5m, 61.3m
Overhang Length
6.7m
Big End Gun
Nelson Sr75& Sr100
Surface
Hot DIP Galvanization
Sprinkler
Nelson/Senninger
Max. Speed
142m/H
Pipe Length
6.7m
Tire Size
14.9X24
Transport Package
Wooden Package
Specification
DYP series: 48m, 54.5m, 61.3m/span, metal
Trademark
Harvest
Origin
Dalian, China
HS Code
84248200
Production Capacity
3000sets/Year

Product Description

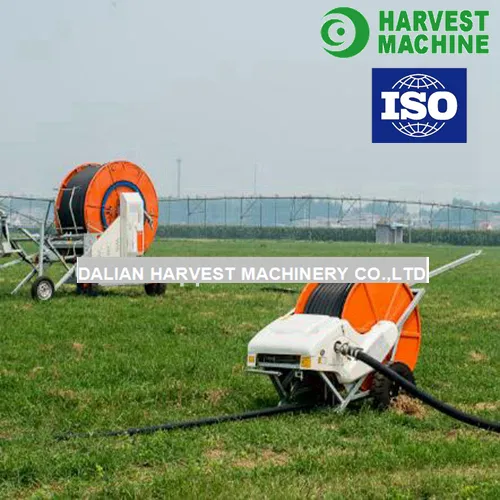

HOSE REEL IRRIGATION SYSTEM
PRODUCT INTRODUCTION The hose reel irrigation machine is composed of frame ,reel,PE tube,water turbine,gearbox and water carriage.Spray gun is mounted on a trolley chich is dragged by the hose driven by water turbine.So the machine actually is motivated by the water pressure.

Single spray gun and framed spray are two model of reel irrigation machine.
Single spray gun model is most popular machine in the market ,it features the longer spray distance,easy for operating and towable.The spray gun swing vertically and is made of aluminum alloy or stiffen plastic and can be used for over 10 years.

Framed spray is driven by lower water pressure.More used for irrigating fragile crops,prevent them from impacting by big droplets and prevent the runoff as well.The turbine is made of stainless steel and coved with high strength aluminum .The axle is sealed by mechanical way and features the excellent sealing and water resisting.The water outing of the turbine has adjustable plate to change speed flatly to assure smooth speed during withdrawing.
SPECIFICATION
Model Pipe Dia
(mm)
Pipe Length
(m)
Max.Strip
Length(m)
Water Flow
(m3/h)
Nozzle Dia
(mm)

50-150TX
50 150 2x180 7-16 11-14

65-220TX
65 220 2X260 13-32 14-22

65-250TX
65 250 2X290 13-32 14-22

65-350TX
65 340 2X380 13-28 14-22

75-300TX
75 400 2X335 13-38 14-26

75-350TX
75 350 2X390 13-38 14-22

75-400TX
75 250 2X435 13-30 14-20

90-250TX
90 250 2X300 17-65 16-30

90-300TX
90 300 2X350 17-65 16-30

110-400TX
110 400 2x435 17-90 18-40

Boom Parameters:
Boom length
26m
Covering width
36m
Water flow
13-60m3/h
Pressure
0.3-1.00Mpa
Nozzle dia.
4.4-7.5mm
Working pressure
0.10-0.20Mpa
Sprinkling range
1.0-5.5m
Rainfall
8-50mm


The boom adopts stainless steel pipe, length is 26m.
Can use the AS26m boom cantilever type if the plant request small rainfall.
With the advantage of lower pressure, smaller water-drop, higher water distribution uniformity, small influence for wind.
MAIN PARTS 1.Water Turbine
Water turbine is the heart of the whole machine parts, it is the power-drive system of machine, also can regulate water flow, ensure PE tube recovery speed uniform.
2. Oriented device
It can effectively guarantee the reliability of the reversing, can ensure PE pipe safely and orderly arrangement in the winch. And guide walk uniform, no card hysteresis, completely solved the problem of oriented mechanism reversing difficult, improve the accuracy of speed adjustment.
3. Gear box
Multi-functional gear box is the control system of whole machine, this system can realize the clutch, brake, variable speed, fast and safe recovery of transmission system.
4. Frame and winch
It can rotate 360°, make the sprinkler car to work on different orientation field, reduce the machine movement frequency, and increase the reclamation index.
5. PE pipe
Our PE pipe is made of special polyethylene material, of which technical indicators have reached the international advanced level. By durability test in different country's climatic condition, its expected service life is more than 15 years.
6. Automatic speed governing device
By a complete set of connecting rod structure, it can adjust the opening of casing tongue of water turbine, achieving infinitely variable speed of water turbine, ensuring PE pipe to maintain a constant speed among different layers.
FEATHERS 1.Irrigation machine is mainly composed of Frame, Reel,PE Tube, Water Turbine,Gearbox and Water Carriage.
2.With Charateristics of Simple and Compact Structure, Easy Operation and Moving, The irrigation machine can be operated by 1-2 persons.
3.High Efficiency and Large Irrigation Area. The Sprinkler can spray water in all directions.
4.Good irrigation quality and uniformity can be up to 85% above.
5.The Irrigation machine, with multi-functions, can be used for farmland irrigation, fruit and vegetable irrigation,pasture and sugarcane spray,power plant and port dedusting.

THE WALKING SKETCH OF HOSE REEL IRRIGATION SYSTEM
PHOTOS OF IRRIGATION SYSTEM
COMPANY INTRODUCTION
Dalian Harvest Machinery Co., Ltd is a leading manufacturer in China for irrigation equipments.
The main products of our company include center pivot irrigation system, fixed pivot irrigation system, towable center pivot irrigation system, lateral move irrigation system and small size center pivot irrigation system, and water hose reel irrigation machine.
We strives to provide first-class quality products and friendly service with rich experience of finish machining.
"Good Quality, Reasonable Price, Best Service" is our goal. We warmly and sincerely welcome customers all over the world to visit our factory and look forward to establishing long term cooperation and solid relationship to make mutual benefit.
For more information, please feel free to contact us.
PACKAGE AND DELIVERY
Spare parts packaged by the standard exporting wooden box.
20", 40", 40"HQ, 40" open top, all available.
SERVICE
1. Professional and quick response to your questions within 24 hours.
2. We will communicate with our production dept. and keep you updated about production progress in time.
3. Customized manufacture available for you.
4. Fast delievery to save your time.
5. Good after sale service will eliminate your worry.
6. Long guarantee period of the quality will reduce your cost and trouble.
7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
WARRANTY
1, 1 year concerning electric equipment
2, 10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
3, 20 years concerning the galvanized equipment against corrosion
4, 3 years for tires and rims
PAYMENT
Wire transfer: 30% advance by T/T, 70% balance by T/T before shipment.
Letter of credit: by irrevocable letter of credit at sight.
Western union: it is a fast and safe way.
TRADE TERM
We can do FOB, C&F and CIF for your choice.
