Good Price Small Toilet Tissue Paper Making Machine

Product Description

Good price small toilet tissue paper making machine,Maxi Roll and Small Toilet Roll Paper Making Machine Production Line jumbo roll towel paper making machine XY-TQ-B
Product Description
Outline

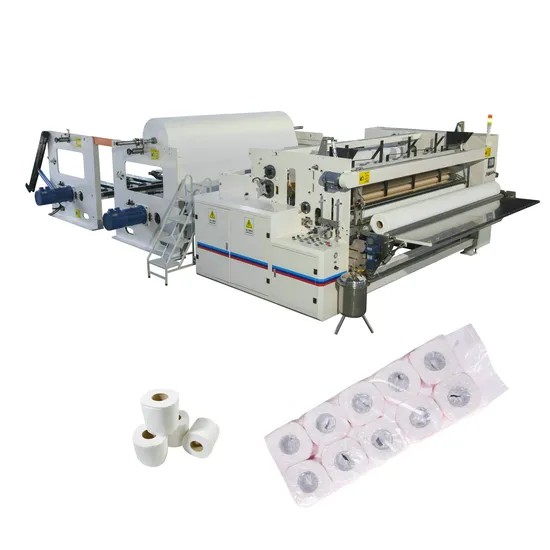

Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll and kitchen towel paper processing. Machine have core feeding unit. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements. Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Technical Parameter

Model	XY-TQ-2800B Wall Type Automatic Toilet Paper Rewinding Machine
Jumbo Roll Max Width	1350--2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter	Φ80~φ280mm
Finished Product Core Diameter	φ38~φ76mm
Production Speed	0~230m/min
Program Controller	PLC(DELTA OR INVT need to confirm)
Unwind Stands	1 or 3 Stands(Need to be specified)
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Main Power	14KW 380V 50HZ
Dimension	7000*4000*1900(L*W*H)
Weight	About 7T
Edge-Line Embossing	Steel to steel (Pneumatic Control)
Full Embossment	Steel to rubber.

Glue lamination embossing system
The production process is: Unreeling - Embossing - Perforating- Rewinding- Tail-gluing- Edge trimming--- Automatic core loading
You can choose the right production line according to your requirements.
Factory
Packing and Shipping
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
