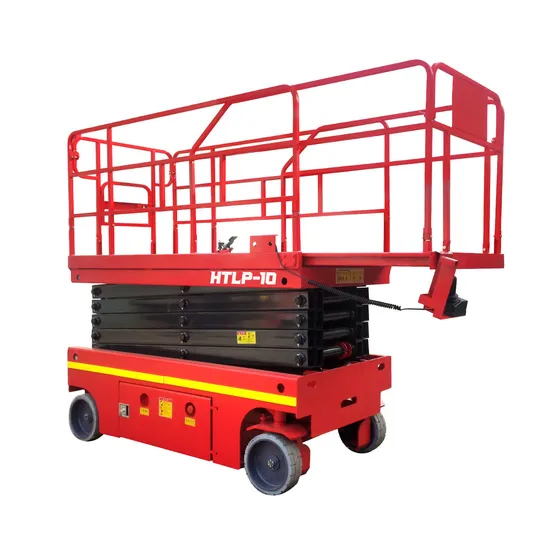

Cheap Price 4m 6m 8m 10m Electric Scissor Lift Lift Table with High Quality

Cheap Price 4m 6m 8m 10m Electric Scissor Lift Lift Table with High Quality

US$7,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Hightop-LP10
Lift Mechanism
Screw Lift
Carrying Capacity
Middle-Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Insulating
Certification
CE
Safe Working Load
320K
Safe Working Load of Extension
113kg
Maximum Number of Workers
2
Maximum Working Height
12m
Maximum Platform Height
10m
Overall Length
2600mm
Overall Width
1170mm
Transport Package
Wooden Case
Specification
10m
Origin
China
Production Capacity
1000sets

Product Description

Product Description
Standard configuration:
Proportional controls
Pothole protection
Self-lock door on platform
Extended platform
Solid non-making tires
2WD
Automatic brake system
Emergengy lowering system
Emergency stop button
Onboard diagnostic system
Safety brackets
Tilt alarm
Forklift pockets
Cylinder holding valve
Motion alarm
Operator horn
Hour meter
Charger protection
Flashing beacon
Folding guardrails
Model Hightop-LP04 Hightop-LP06 Hightop-LP08 Hightop-LP10 Hightop-LP12 Hightop-LP14
Safe working load 320kg 320kg 320kg 320kg 320kg 320kg
Safe working load of extension 113kg 113kg 113kg 113kg 113kg 113kg
Maximum number of workers 2 2 2 2 2 2
Maximum working height 6m 8m 10m 12m 14m 16m
Maximum platform height 4m 6m 8m 10m 12m 14m
Overall length 2600mm 2600mm 2600mm 2600mm 2600mm 3200mm
Overall width 1170mm 1170mm 1170mm 1170mm 1170mm 1500mm
Overall height (fence not folded) 2160mm 2280mm 2400mm 2520mm 2640mm 2640mm
Overall height (fence folding) 1460mm 1580mm 1700mm 1820mm 1940mm 1940mm
Working platform size (length x width) 2400mm*1170mm 2400mm*1170mm 2400mm*1170mm 2400mm*1170mm 2400mm*1170mm 2800mm*1400mm
Platform extension size 0.7m 0.7m 0.7m 0.7m 0.7m 0.7m
Minimum ground clearance (retracted) 0.1m 0.1m 0.1m 0.1m 0.1m 0.1m
Minimum ground clearance (lifting 0.019m 0.019m 0.019m 0.019m 0.019m 0.019m
Wheelbase 1.89m 1.89m 1.89m 1.89m 1.89m
Minimum turning radius (inner wheel) 0 0 0 0 0 0
Minimum turning radius (outer wheel) 2.20m 2.20m 2.20m 2.20m 2.20m 2.20m
Lifting motor/drive motor 24v/4.0kw 24v/4.0kw 24v/4.0kw 24v/4.0kw 24v/4.0kw 24v/4.0kw
Machine ground speed (stowed) 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h
Machine travel speed (lifting state) 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Up / down speed 80/90 sec 80/90 sec 80/90 sec 80/90 sec 80/90 sec 80/90 sec
Battery 6V/230Ah 6V/230Ah 6V/230Ah 6V/230Ah 6V/230Ah 6V/230Ah
Charger 24v/25A 24v/25A 24v/25A 24v/25A 24v/25A 24v/25A
Max Climb Capability 25% 25% 25% 25% 25% 25%
Maximum allowable working angle (indoor / outdoor) 2°/3° 2°/3° 2°/3° 2°/3° 2°/3° 2°/3°
Tyre Φ381*127 Φ381*127 Φ381*127 Φ381*127 Φ381*127 Φ381*127
Weight of whole machine 2000kg 2200kg 2400kg 2600kg 2800kg 3500kg
