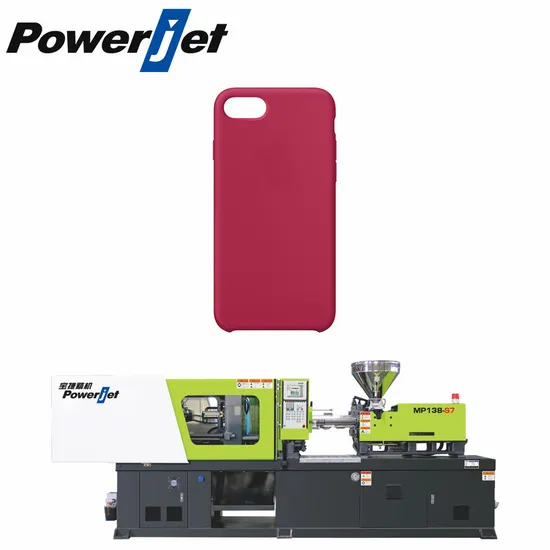

Phone Cases Making Machine Injection Molding Machine

Product Description

Product Description
FEATURES:
1:Increased 40% of Injection Speed And Pressure - Suitable to manufacturing phone cases.
2:Specialized Screw For PC & TPU - Solve the problems about product become yellow and other issues.
3:SKD Distributor/Ring/Washer - Wear-resistant & Anti-fatigue, greatly reducing the probability of cracking also improving machine lifetime.
4:Hydraulic System Upgrade - More powerful and higher manufacturing effciency.
5:Strengthened Platen Structure - Reducing the deformation of the platen, resulting higher precision and provides long-term stable operation.
Product Parameters

Description		UNIT	BJ330-V6/S6
CLAMPING UNIT	Clamping force	KN	3300
	Opening stroke	mm	600
	Max.datlight	mm	1280
	Platen size	mm	985x985
	Space between bars	mm	670x670
	Max.mold height	mm	680
	Min.mold height	mm	250
	Ejector stroke	mm	180
	Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	60	68	75
	Screw L/D Ratio	L/D	21	20.6	19
	Injection Pressure	MPa	217	169	139
	Shot volume	cm³	876	1126	1370
	Shot weight (ps)	g	780	1002	1219
		oz	27.5	35.4	43
	Injection rate	g/s	229	294	358
	Screw stroke	mm	310
	Screw speed	rpm	170
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	30/51.6
	Heater power	KW	18
GENERAL	Dry-cycle time	s	3.2
	Oil tank capacity	L	460
	Machine weight	T	10.0
	Machine dimensions (L*W*H)	m	6.8x1.62x2.3

Company Profile

Powerjet Plastic Machinery Co., LTD Focus On Manufacturing And Development Of Injection Molding Machine And Blow Molding Machine Over 20 Years. Powerjet And Installed Over 18,500 Molding Machines Worldwide And Renowned In "Energy-Saving, High Performance, High Speed, Precision".Factory in 50,000 square meters, with more than 350 staff members, over 20 branch offices across the country with advanced experience and lean production.
And we also focus on the development of special injection molding machines according to the customer's need, like machines for PET preform, PVC/PPR fitting, thin-walled product, silicone, batelite, and multi-material products, and also provide the turnkey projects for the customers.
Our Services & Strength Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan. With a global sales network, our local offices and agents can provide more convenient and sincere services. 1:Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
2:Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
3:Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
4:Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
5:Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
