Elevator Rotary Die Head PE Film Blowing Machine
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CPHL
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Main Motor
Simen
Inverter
Delta Taiwan
Applicable Material
LDPE,HDPE,LLDPE,EVA
Die Head
Rotary Die Head
Processing Type
Single-Screw Plastic Extruder
Other
as Customer Requiermente
Transport Package
Wooden Pallet
Specification
CE, SGS, ISO9001: 2000
Trademark
CHOVYTING
Origin
Made in China
HS Code
84778000
Production Capacity
100 Sets/Year
Product Description
Specifications
1.Single-Screw Plastic Extruder
2.High Speed:10-100m/min
3.High quality

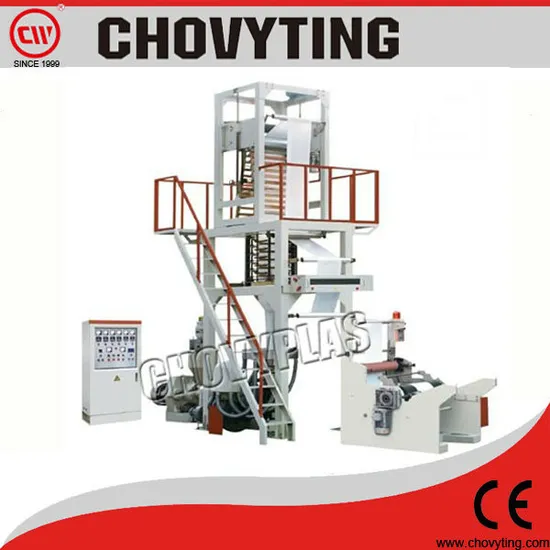

film blowing machine for PE FILM
This machine is used for blowing plastic film like HDPE,LDPE,LLDPE, etc .The extruder system has super strong mechanism intensity,well capability and wear,screw and die special design. For increasing the capacity.
Optional
1. AUTO LOADER 2. CORONA TREATER
3. AIR COMPRESSOR 4. MANUAL MECHANICAL SCREEN CHANGER
5. DOUBLE WINDER 6. DIE ROTARY DEVICE.
Parameter:
Type | CP-50HL | CP-55HL | CP-60HL | CP-65HL | |
Suitable raw material | HDPE LDPE LLDPE | ||||
Film width | 200-600mm | 400-800mm | 500-1000mm | 600-1200mm | |
Film thickness | HDPE | 0.009-0.05mm | 0.009-0.1mm | 0.009-0.1mm | 0.009-0.1mm |
LDPE | 0.02-0.1mm | 0.03-0.1mm | 0.03-0.1mm | 0.03-0.1mm | |
Max.extrusion output | HDPE | 50kg/hr | 55kg/hr | 65kg/hr | 70kg/hr |
LDPE | 55kg/hr | 65kg/hr | 70kg/hr | 75kg/hr | |
Extruding unit | |||||
Screw diameter | Φ50 | Φ55 | Φ60 | Φ65 | |
Screw L/D length | 30:1 | ||||
Cylinder material | Bi-Metallic/SACM-645 with nitrided treatment | ||||
Cylinder cooling | 370W*3 | 370W*3 | 370W*3 | 370W*3 | |
Temperature control | 3 groups | 3 groups | 3 groups | 3 groups | |
Extruding motor | 15kw | 18.5kw | 22kw | 30kw | |
