30L Long Range Dron Agricola Precio Irrigation Farm Machine Drone Agriculture Uav Reliable 4-Axis RC Crop Pesticide Spraying Drone for Agricultural Fumigation

Product Description

Product Description

Dimension	2515*1650*788mm (Unfoldable)
	1040*1010*788mm (Foldable)
Effective spray (depending on the crop)	6~8m
Whole machine weight (including battery)	40.6kg
Maximum effective takeoff weight (near sea level)	77.8kg
Battery	30000mAh, 51.8V
Payload	30L/45KG
Hovering time	>20min (No load)
	>8min (Full load)
Maximum flight speed	8m/s(GPS mode)
Working height	1.5~3m
Positioning accuracy (good GNSS signal, RTK enabled)	Horizontal ± 10cm Vertical ± 10cm
Avoidance perception range	1~40m (Avoidance front and rear according to the flight direction)

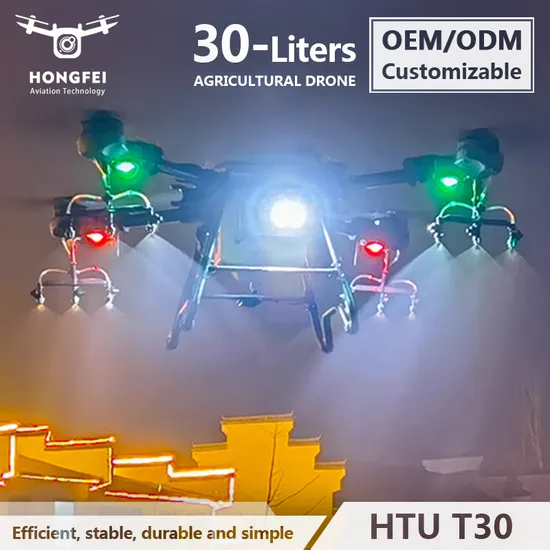

HTU T30 intelligent drone supports 30L large medicine box and 45L sowing box, which is especially suitable for large plot operation and medium plot and spraying and sowing areas with demand. Customers can choose the most suitable configuration according to their actual needs, no matter they use it for themselves or undertake plant protection and flying defense business.
Features
1. All-aviation aluminum main frame, light weight, high strength, impact resistance.
2. Module-level IP67 protection, no fear of water, dust. Corrosion resistance.
3. It can be applied to multi-scene crop drug spraying, sowing and spreading fertilizer.
4. Easy to fold, can be installed in common agricultural vehicles, easy to transfer.
5. Modular design, most parts can be replaced by themselves.
Modular Design
·Full aviation aluminum main frame, reduce weight while high strength, impact resistance.
·Core components closed treatment, avoid dust entry, resistant to liquid fertilizer corrosion.
·High toughness, foldable, triple filter screen
Spraying and Spreading System
Equipped with 30L oversized medicine box
·The operating efficiency is increased to 15 hectares/hour.
·Equipped with no manual pressure relief valve, automatic exhaust, equipped with pressure nozzle, liquid medicine does not drift, can support centrifugal nozzle, powder does not block.
·The full-range continuous level gauge shows the true liquid level.

Medicine box capacity	30L
Nozzle type	High pressure Fan nozzle Support switching centrifugal nozzle
Number of nozzles	12
Maximum flow rate	8.1L/min
Spray width	6~8m

Equipped with 45L bucket, large load
·Up to 7m sowing width, the Air Spray is more uniform, does not hurt the seeds, does not hurt the machine.
·Full anti-corrosion, washable, no blockage.
·Measuring material weight, real time, anti-overweight.

Material box capacity	45L
Feeding method	Roller quantification
Bulk material method	High pressure air
Feeding speed	50L/min
Sowing width	5~7m

Multiple Functions
·Provides multiple modes of operation, including fully autonomous, AB points, and manual operations.
·A variety of enclosure methods: RTK hand-held pointing, airplane dot, Map dot.
·High-bright screen remote control, you can see clearly under the scorching sun, 6-8 hours long battery life.
·Fully automatic generation of sweeping routes to prevent leakage.
·Equipped with searchlights and help lights, it can also operate safely at night.
·Night navigation: Front and rear 720P HIGH definition FPV, rear FPV can be flipped down to view the ground.
Intelligent Auxiliary Function
·Ultra-far 40m automatic identification of obstacles, autonomous obstacles.
·Five-wave beams imitate the ground, accurately follow the terrain.
·Front and rear 720P HD FPV, rear FPV can be turned down to observe the ground.
Intelligent Charging
·Can be 1000 cycles, the fastest 8 minutes full, 2 blocks can be looped.
Standard Configuration
Drone*1 Remote control*1 Charger*1 Battery*2 Handheld Mapping Device*1 Packaging & Shipping

Production, assembly	Testing	Packaging (customized boxing method available)	Loading and shipping

Company Profile
Hongfei Aviation Technology Co., Ltd.
Is Established in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.

Strength	Service	Quality	Certificates
Years of operation, with rich manufacturing and sales experience. ·Support OEM/ODM ·Independent factory ·With professional R&D team ·Possess many patents ·One of the leading drone manufacturers in China	Quality service to meet your needs. ·Perfect pre-sales and after-sales service ·According to the application industry, we can match the best solution for you ·Focus on customer feedback, timely and effective solution to customer problems	Professional production system to ensure the quality of each product. ·Passed ISO9001 international quality system certification ·Controlling the details, to ensure that each detail of the product delivery	Received several certifications. ·20 invention patents ·15 utility model patents ·23 software copyrights ·1 appearance patent

FAQ
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
