High Quality ONU 4ge Gpon 1pots F670L ONU
Basic Info.
Model NO.
DJS-F670L
Signal Type
Band Modem
Installation
PCMCIA Card
Clip Function
Soft Modem
Interface Type
USB
Transmission Rate
2g 3G 4G 5g
Application
Enterprise, Household
Transport Protocols
Modulation Protocols
Transmission Mode
Fax Modem
Use
FTTX
Warranty Time
1 Year
Network
Wireless LAN, Wired LAN, WiFi, Wiegand
Power Supply
DC 12V/1A
Weight
0.2kg
Fiber Type
Single Fiber Single Mode
Color
White
Transport Package
Yes
Specification
30 mm x 184 mm x 112 mm
Trademark
DJS
Origin
China
Production Capacity
10000month
Packaging & Delivery
Package Size
3.00cm * 18.40cm * 11.20cm
Package Gross Weight
0.400kg
Product Description

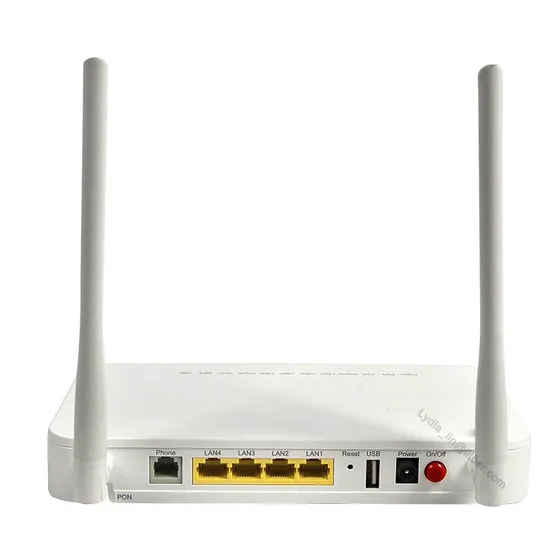

TTH GPON ONU ONT model 4GE+1TEL+ 1USB+ Dual Band 2.4G&5.G WIFI ZTE F670L ZXHN F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 1GE&3FE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.| Specification | F670L | |||
| Dimensions (H x W x D) | 30 mm x 184 mm x 112 mm(without an external antenna and pads) | |||
| Operating temperature | 0°C to 40°C | |||
| Operating humidity | 5% RH to 95% RH (non-condensing) | |||
| Power adapter input | 100-240 V AC, 50/60 Hz | |||
| System power supply | 11-14 V DC, 3 A | |||
| Static power consumption | 3.6 W | |||
| Maximum power consumption | 8 W | |||
| NNI | GPON/EPON | |||
| Optical Connector | SC/UPC | |||
| Ports | 4GE+1POT+1USB+WIFI | |||
| Indicators | POWER/PON/LOS/USB/LAN/WLAN/USB/WPS | |||
A: Yes
Q2:Can i buy a sample for the quality tested? What's the MOQ of the product ?
A: Of course, welcome to buy sample to test quality. MOQ usually 100 pieces, special requirement, MOQ will be different.
Q3:Can you printed our logo on the product or do the customized package box for us?
A: Sure, our factory produces OEM/ODM .
Q4:What's the Lead time?
A: It is up to quantity and requirement, standard 2-7 working days.
Q5:What's your warranty time?
A:Warranty is 12 months
Q6:What's the shipment methods? Can we use our own Express account number?
A: Shipping methods is up to your. yes, we can send it via your account of courier.
