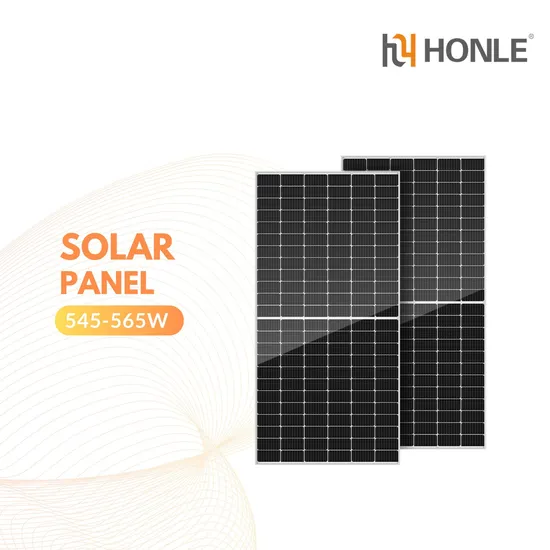

Hot Sell Solar Energy 144cells Half Cut Cell 565W Solar Panel Set

Product Description

Product DescriptionHonle 545W/550W/555W/560W/565W Half Cell Perc Solar Panel
KEY FEATURES:
1. High Module Conversion Efficiency
MBB Half Cell Technology, Module efficiency up to 21.87%
2. Withstanding Harsh Environment
Reliable quality leads to a better sustainability even in harsh environments like desert, farm and coastline
3. PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
4. Excellent Weak Light Performance
More power output in weak light conditions, such as cloudy, morning and sunset
5. Extended Wind and Snow Load Tests
Module certified to withstand extreme wind(2400 Pa) and snow loads (5400 Pa)
Our Advantages
Product Parameters

Module Type	HLM545M10-72HPH	HLM550M10-72HPH	HLM555M10-72HPH	HLM560M10-72HPH	HLM565M10-72HPH
	STC NMOT	STC NMOT	STC NMOT	STC NMOT	STC NMOT
Maximum Power (Pmax/W)	545 406	550 410	555 413	560 416	565 419
Operating Voltage (Vmp/V)	42.06 38.35	42.16 38.43	42.24 38.52	42.33 38.59	42.42 38.66
Operating Current (Imp/A)	12.96 10.58	13.05 10.66	13.14 10.73	13.23 10.80	13.32 10.88
Open-Circuit Voltage (Voc/V)	49.70 46.21	49.80 46.31	49.90 46.40	50.00 46.49	50.10 46.58
Short-Circuit Current (Isc/A)	13.84 11.18	13.94 11.27	14.04 11.34	14.14 11.42	14.24 11.50
Module Efficiency ηm(%)	21.10	21.30	21.49	21.68	21.87

STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5 NMOT: Irradiance at 800W/m2, Ambient Temperature 20°C, Air Mass AM1.5, Wind Speed 1m/s

Mechanical Specification
Cell Type	Monocrystalline
Cell Dimensions	182*91mm
Cell Arrangement	144 (6*24)
Weight	28.6kg
Module Dimensions	2278*1134*35mm
Cable Length	Portrait 300mm/Landscape 1200mm/Customized
Cable Cross Section Size	TUV: 4mm² (0.006inches² )/UL: 12AWG
Front Glass	3.2mm (0.13inches) AR Coating Tempered Glass
No. of Bypass Diodes	3
Packing Configuration	31pcs/carton, 620pcs/40hq
Frame	Anodized Aluminium Alloy
Junction Box	IP68
Operating Conditions
Maximum System Voltage	1000/1500V/DC(IEC)
Operating Temperature	-40°C~ +85°C
Maximum Series Fuse	25A
Static Loading	Snow Loading: 5400Pa/ Wind Loading: 2400Pa
Conductivity at Ground	≤0.1Ω
Safety Class	II
Resistance	≥100MΩ
Connector	T01/LJQ-3-CSY/MC4/MC4-EVO2
Temperature Coefficient
Temperature Coefficient Pmax	-0.36%/°C
Temperature Coefficient Voc	-0.29%/°C
Temperature Coefficient Isc	+0.048%/°C
NMOT	45±2°C

Application
Company Profile
Honle Group, located in Zhejiang China, is a globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions. With more than two decades of experience in electric and new energy industry. Honle Group has established branches in Russia, Uzbekistan, UAE, Indonesia, Tanzania, Cote d'Ivoire etc. With protracted and stable products and services, Honle is solidifying his reputation as a renowned supplier worldwide.
Our state-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters, and we are open to negotiating maximum capacities for our power solutions. Honle's new energy power solutions and battery products find wide applications in various traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.
Honle Group has established more than 100 agents in China, and established Honle International Tanzania Co., Ltd. and Honle International Uganda Co., Ltd. abroad.
At the same time, offices and general agents have been established in more than 30 countries and regions including Indonesia, Russia, Uzbekistan, Nigeria, and the United Arab Emirates.Production Line
As an innovation-oriented company, our production line is equipped with the latest technology and machinery, as well as high level testing machine and devices. We have a team of experienced and skilled workers who oversee the production process and ensure that every product meets the strict quality standards.
Certifications
Packaging & Shipping
FAQQ1.Do you have any MOQ limit?
A: Yes. In general, MOQ is 1 pallet.
Q2 How about your delivery time?
A: For the big capacity, we can deliver around 25 days. Depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.
Q3. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service. We can design the packaging and logo according to your requirements.
Q4. Do you test all your goods before delivery?
A: Yes, all our products have been tested before delivery.
Q5.Tell me the standard of package?
A: We use cartons and pallets for protection.
Q6.Could you offer Form A or C/O ?
A: No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates for free.
