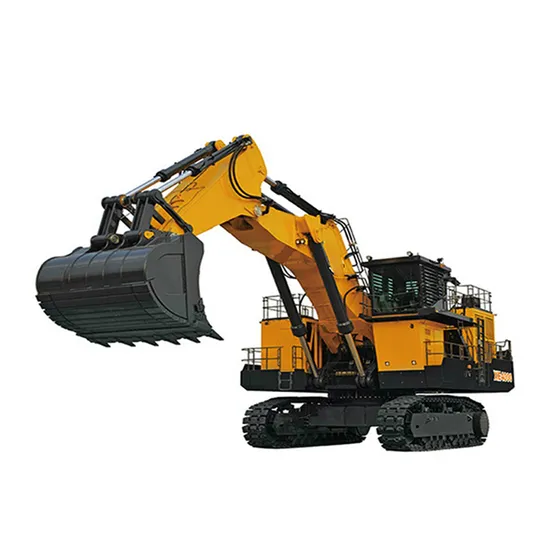

Xcm G New 70 Ton Xe700d Crawler Excavator

Product Description

Detailed Photos

Product Parameters

Description				Unit	Parameter value
Operating weight				kg	69000
Bucket capacity				m³	2.4-4.6
Engine		Model		Engine	QSX15
		Style	Direct injection	---	√
			Four strokes	---	√
			Water cooling	---	√
			Turbo-charging	---	√
			Air to air intercooler	---	√
		No. of cylinders		---	6
		Output power		kW/ r/min	336/1800
		torque/speed		N.m	2102/1400
		Displacement		L	15
Main performance		Travel speed(H/L)		km/h	4.2/3.0
		Gradeability		%	35
		Rotary speed		r/min	7
		Ground pressure		kPa	101.4
		Bucket digging force		kN	363
		Arm digging force		kN	300
		Travel traction force		kN	450
Hydraulic system		Main pump		--	2
		Rated flow of main pump		L/min	2×450
		Pressure of prime valve		MPa	31.4/34.3
		Pressure of travel system		MPa	34.3
		Pressure of swing system		MPa	28.5
		Pressure of pilot system		MPa	3.9
Oil Capacity		Fuel tank capacity		L	950
		Hydraulic tank capacity		L	500
		Engine oil capacity		L	48
Appearance size		Overall length		mm	12130
		Overall width		mm	4410
		Overall height		mm	4700
		Width of platform		mm	4410
		Length of crawler		mm	5955
		Overall width of chassis		mm	4000
		Width of crawler		mm	650
		Wheel base of crawler		mm	4685
		Crawler gauge		mm	2800/3350
		Clearance under counterweight		mm	1565
		Min. ground clearance		mm	853
		Min. tail swing radius		mm	4090
Working scope		Max. digging height		mm	11300
		Max. dumping height		mm	7320
		Max. digging depth		mm	6950
		Max. digging depth at the range of level 8 feet		mm	6800
		Max. vertical wall digging depth		mm	5550
		Max. digging reach		mm	11580
		Min. swing radius		mm	4750
Worker	Standard	Length of boom		mm	6600
		Length of arm		mm	2900
		Bucket capacity		m³	3.8
	Optional	Length of boom		m³	7300
		Length of arm		m³	3500
		Bucket capacity		m³	2.4/2.8/3.1/3.5/4.0/4.6

Packaging & Shipping




We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, etc. South America: Brazil, Peru, Chile, Cuba, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, S A N Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, Z F GEAR BOX, etc.
