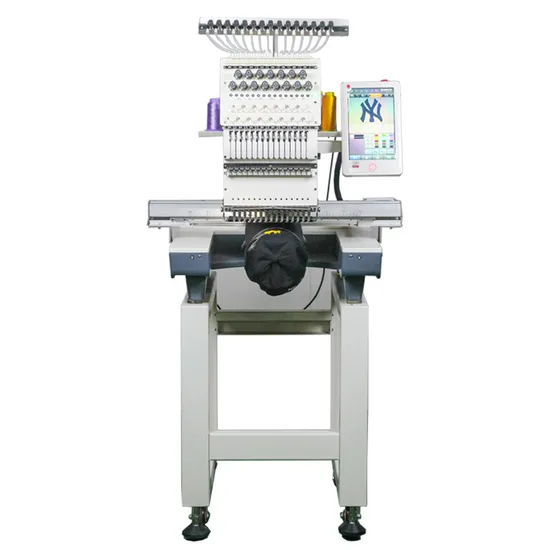

Single Head 12 15 Needles T-Shirt Hat Cap Logo Computer Reads Multiple Design Formats Computerized Embroidery Machine
Basic Info.
Model NO.
1501
Condition
New
Certification
CE
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Needle Number
Fifteen Needles
Head Number
Single
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery
Weight (Kg)
180 Kg
Maximum Speed
1200 Rpm
Embroidery Area
500*350mm
Operation
Computerized
Warranty of Core Components
1 Year
Name
Single Head Small
Key Selling Points
Automatic
Language
13 Languages
Head
1 Head
Overall Dimensions
1090X750X1530mm
Type
Cap Embroidery Machine
Product Name
Single Head Cap Embroidery Machine
Needle
9/12/15 Needles
Transport Package
Wooden Package
Trademark
Disen
Origin
China
HS Code
8447902000
Production Capacity
1000PCS/Year
Product Description
Product DescriptionSpecification
MODEL: 1501 Single Head 15 Needles Embroidery Machine 1.Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc. 2. Embroidery area: 500*350mm 3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface 4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump. 5. Automatic thread trimmer 6. The running speed:100- 1200rpm 7. 280 degree Wide cap frame unit 8. Automatic color change and thread break detection 9. Start, Stop and emergency Stop Button 10.Design Tracing Available 11.One-Step Tracing 12. 10'' touch screen display control pannel, showing real time stitching 13. Memory size: 500 Patterns,200 Million stitches 14. Computer Reads Multiple Design Formats.Such As DST.DSB And More. 15. USB port 16.Networkable And Wi-Fi capable 17. Control system can be updated easily 18. Multi-languages:, Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish 19. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available 20.Equip With Laser Positioning 21.Woodencase Packing. 22.Machine Size: 1090x750x1530MM Packing Size:850x835x900mm 23.Net Weight:150KG Gross Weight:180KG
| Name | QTY. | Name | QTY. |
| complete machine | 1set | bobbin winder | 1set |
| body stand | 1set | owner's manual | 1pc |
| front working table | 1set | tool box | 1pc |
| cap station | 1set | needle | 1packs |
| cap framehoop | 2pcs | machine-oil | 1pc |
| cap driver | 1set | bobbin case | 1pc |
| round hoop 95mm | 2pcs | bobbin core | 2pcs |
| round hoop 145mm | 2pcs | power cable | 1pc |
| round hoop 190mm | 2pcs | needle plate screw | 2pcs |
| Square hoop 240*240mm | 2pcs | long flat nose pliers | 1pc |
| Square hoop 335*335mm | 1pcs | forceps | 1pc |
| pantograph 1650*450mm | 1pc | hexagonal socket wrench | 1set |
| hoop support | 1set | thread picker | 1pc |
| aluminum table support | 0pc | 4*25 inner hexagon | 2pcs |
| plastic table support | 1pc | 4*12 inner hexagon | 2pcs |
| flash diskUSB | 1pc | 4*8 cross screw driver | 2pcs |
| screw knife - | 1pc | 5.5-7 wrench | 1pc |
| screw knife + | 1pc | 8-10 wrench | 1pc |
| screw knife - 5x125 | 1pc | 17-19 wrench | 1pc |
| screw knife + 5x125 | 1pc | 22-24 wrench | 1pc |
| S#5.5mm | 1pc | scissors | 1pc |
Embroidery effect Factory workshop Packing & Delivery
