Waste Plastic Recycling Machine Post Consumer PE PP LDPE HDPE LLDPE Agriculture Packaging Film Woven Bag Shredder
| US$15,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Type
Plastic Shredder
Raw Material
Plastic/Film
Structure
Top Feed
Knife Classification
Claw Knife Crusher
Knife Roll
Solid Knife Roller
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Gear Box Cooling
by Water
Hydraulic Cooling
by Air
Safety Design
with PLC Auto Control
Transport Package
Film with Wooden Pallet
Specification
Customized
Trademark
Lanrry
Origin
Guangzhou
Product Description

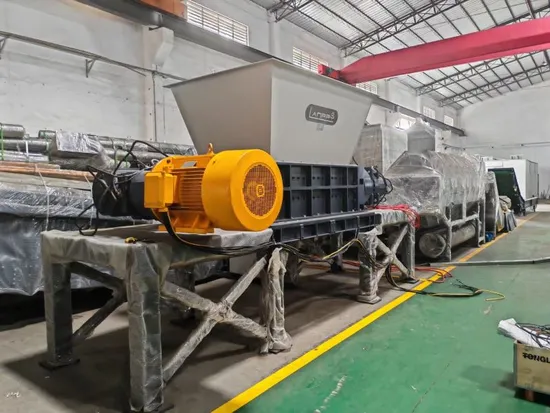

Product DescriptionThe GL series shredders have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction. It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.
SMALL TWO SHAFT SHREDDER
| Item Model | GL2130 | GL2140 | GL2160 | GL2180 |
| Dimension L/W/H(mm) | 1210×1080×1840 | 1892×910×1911 | 2658×910×1911 | 3018×1367×1911 |
| Cutting chamber C/D(mm) | 300×430 | 410×470 | 610×470 | 910×470 |
| Rotor Diameter (mm) | φφ284 | φ284 | φ284 | φ284 |
| Blade quantity(pcs) | 15 | 20 | 30 | 40 |
| Blades thickness (mm) | 20 | 20 | 20 | 20 |
| Main Motor Power (kw) | 7.5 | 7.5 | 5.5+5.5 | 7.5+7.5 |
| Weight (kg) | 950 | 1500 | 2100 | 2400 |
MEDIUM TWO SHAFT SHREDDER
| Item Model | GL3280 | GL32100 | GL32120 | GL40100 | GL40130 | GL40160 |
| Dimension L/W/H(mm) | 2940×1816×2270 | 3275×1946×2275 | 3416×1946×2275 | 3334×1866×2670 | 3716×2234×2670 | 4674×1770×3765 |
| Cutting chamber C/D(mm) | 812×736 | 1012×736 | 1213×736 | 984×948 | 1324×948 | 1624×948 |
| Rotor Diameter (mm) | φ430 | φ430 | φ430 | φ514 | φ514 | φ514 |
| Blade quantity (pcs) | 20 | 25 | 30 | 20 | 26 | 32 |
| Blades thickness (mm) | 40 | 40 | 40 | 50 | 50 | 50 |
| Main Motor Power (kw) | 15+15 | 22+22 | 22+22 | 37+37 | 45+45 | 45+45 |
| Weight (kg) | 3700 | 4100 | 4500 | 6500 | 8700 |
HEAVY TWO SHAFT SHREDDER
| Item Model | GL50130 | GL50180 | GL61180 | GL61210 |
| Dimension L/W/H(mm) | 4187×2060×2702 | 5170×1866×3905 | 5404×2404×3746 | 5297×2714×3537 |
| Cutting chamber C/D(mm) | 1612×1006 | 1812×1206 | 1812×1490 | 2112×1510 |
| Rotor Diameter (mm) | φ650 | φ650 | φ800 | φ800 |
| Blade quantity (pcs) | 32 | 36 | 24 | 24 |
| Blades thickness (mm) | 50 | 50 | 75 | 75 |
| Main Motor Power (kw) | 55+55 | 55+55 | 75+75 | 90+90 |
| Weight (kg) | 12800 | 13600 | 20200 | 23200 |
Detailed Photos
APPLICATIONS
Certifications
Company Profile
