Dry Combined Full Fat Soya Extruder Machine Soybean Extruder and Oil Press

Product Description

Dry Combined Full Fat Soya Extruder Machine Soybean Extruder and Oil Press
Product Description
This soybean extruder adopts a combined main shaft, which can be adapted to the expansion of different materials. The supporting facilities for processing whole corn and soybeans are simple, and the operation and maintenance are convenient. The dry expansion machine and the wet expansion processing conditions are easily interchangeable. The screw sleeve adopts an inlaid alloy steel bar structure , Longer service life. Widely used in extruded soybean, corn, suckling pig feed and other livestock and poultry feed,rice bran preservation, cotton meal, castor meal detoxification treatment, it is an ideal tool for feed processing enterprises.
The soya bean extruder machine is designed to bulk soya,corn for animal feed making with high protein,widely used as source of protein in animal diets, including pig, chicken, cattle, horse, sheep, and fish feed.It is widely used in soybean, maize,soybean meal, cottonseed meal, rice bran and other raw materials.
1.Increases amino acid digestibility and reduces bitter flavours
2.Modifies protein, eliminating several anti-nutritional factors, while changing the tertiary structure of protein, shortening protein hydrolysis time in the digestive tract and improving digestibility.
3.Improves gelatinisation of the starch and gives it strong water absorption and bonding properties.
4.Releases encapsulated fats and improves energy value.
5.Reduces FFA (Free fatty acid) content and deactivates lipase minimising oil and fat degradation while reduces rancidity of oil components during storage and transportation.
6.Increases palatability by reducing water and crude fibre content
7.Increases safety by eliminating maximum bacteria, muscardine and fungus in the raw material.
Application Effect:
1. The maximum gelatinization degree of corn starch can reach 95% after puffing
2. The index value of urease activity of soybeans after puffing is less than 0.2
3. The highest virus-free rate of cottonseed cake can reach more than 92% after puffing
4. After puffing rice bran, the activity of lipase in rice bran can be effectively inhibited, the structure of fat layer can be destroyed, and the process requirements of rice bran passivation and preservation can be met
5. The bulking treatment of Suckling pig feed can prevent diarrhea and enhance palatability of piglets. Product Parameters

Model	Capacity (kg/h)	Main Power (kw)	Feed Power (kw)	Screw Diameter (mm)	Dimension (mm)	Weight (kgs)
DGP40 (Single Phase)	30-40	4.0	0.4	Φ40	1400*1030*1200	220
DGP40 (3 Phases)	30-40	5.5	0.4	Φ40	1400*1030*1200	240
DGP50	60-80	11	0.4	Φ50	1470*1100*1250	320
DGP60	100-150	15	0.4	φ60	1470*1120*1250	350
DGP70	180-200	18.5	0.4	φ70	1650*1400*1300	580
DGP80	200-300	22	0.6	φ80	1800*1450*1300	695
DGP90	300-400	37	0.6	φ90	2100*1450*1350	950
DGP120	500-600	55	1.1	φ120	2400*1950*1600	1700
DGP135	700-800	75	1.1	φ133	2550*2050*1650	1900
DGP160	1000-1200	90	1.5	φ155	3100*2650*1800	3200
DGP200	1800-2000	132	2.2	φ195	3100*2850*1900	3800

Model	Capacity (kg/h)	Main Power (kw)	Feed Power (kw)	Screw Diameter (mm)	Dimension (mm)	Weight (kgs)
DSP60	180-200	15	0.4	60	1780*1250*1300	480
DSP70	250-300	18.5	0.6	70	2460*1550*1740	940
DSP80	350-400	22	1.1	80	2650*1450*1750	1000
DSP90	500-600	37	1.1	90	2600*2100*1900	2000
DSP120	700-800	55	1.1	120	3200*1950*1900	2200
DSP135	1000-1200	75	1.5	135	3750*1980*1800	2500
DSP160	1800-2000	90	2.2	160	6600*2800*2330	3800
DSP200	3000-4000	132	2.2	200	6600*2900*2350	4500

Detailed Photos

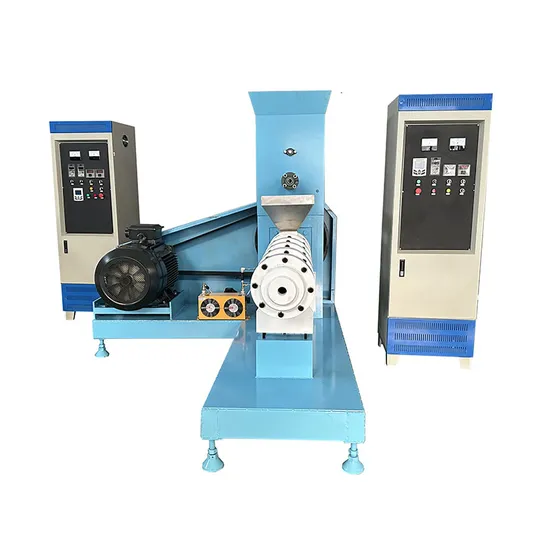

DGP Series Dry Type Soybean Extruder
DSP Series Wet Type Soybean Extruder
Soybean Meal Production Line

Successful Cases
Related Machines
Soybean Oil Press Machine
This screw oil press machine is mainly used for the pressing oil crops such as sunflower seed, peanut,rapeseed,soybean,cottonseed, mustard seed, and dried coconut. The equipment is equipped with micro-electronic control, vacuum filtration,three-stage pressing system,etc, and the alloy steel is carburized to improve the surface hardness and wear resistance of the pressing screw rolls. The screw oil press machine has the advantages of easy operation, labor saving, reliable performance,small footprint, wide use, high oil yield, energy saving, and pure oil quality,etc.
Soybean Meal Cooing Machine
Materials evenly enter the cooling room through the air closure device on the pneumatic conveying device. At the same time, start the fan installed on the Shakron. Cold air enters from the discharge port at the bottom of the cooler and carries away the heat and light dust through the material layer.
Generally, the cooling time of each batch of materials is about 8-10 minutes. When the cooling time is up, manually open the discharge rod, and close it after discharging the materials to prepare for feeding again.
