Tphd2016 High Speed Drilling and Tapping Machine for Steel Plates

Product Description

Product Description

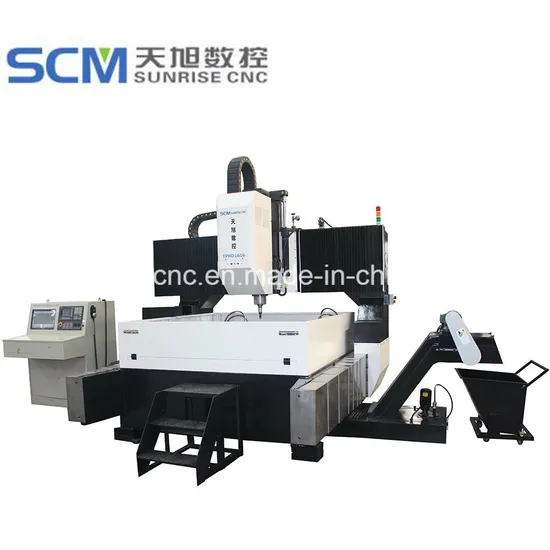

TPHD2016 High speed drilling and tapping machine for steel plates
Applicable Industry:
The machine is the automatic special drilling machine for steel plates/connection plates, mainly in the field of angle steel tower industry, structure storage facilities, and steel structure construction industries etc.
Advantages of high speed CNC drilling:
1. High speed Max. to 3000 rpm;
2. High production efficiency, for example drill one 30mm hole on 40 thickness just about 6 seconds;
3. High precision, the re-position precision 0.08mm;
4. Controlled by SIEMENS CNC system;
5. Inner-cooling;
6. Automatic lubrication system;
7. Can do the drilling, milling, tapping, reaming works.
Product Parameters

Model	TPHD2016
Max work piece size (L×W)	2000x1600mm plate or Φ1600mm flange
ThickNess of work piece	6--120mm
Drill unit type	sliding table, servo control
Drill head quantity	one
Max drill diameter	Φ40mm
Taper hole of spindle	BT40
Spindle speed	30~3000r/min
Spindle vertical stoke (Z axis)	300mm
Servo motor power of X axis	2.0 kW
Servo motor power of Y axis	1. 5 kW
Servo motor power of Z axis	2.0 kW
Motor power of scrap cleaner	0.75 kW
Clamping type	12 Hydraulic clams and T-slot
Electric control type	SIEMENS 808D
CNC axis quantity	3
Position precision	±0.08mm
With function of CAD/CAM automatic generation
With function of break point memory (Restart production easily after power off)
Overall size	About 4900x3900x3200
Weight	About 14000

Detailed Photos

After Sales Service

Installation:The seller shall send one engineer to the buyer's country for installation, commissioning and training. The buyer is responsible to provide all necessary equipments for handling and lifting the machine parts before seller's engineers go to the buyer's plant. In addition, the buyer should provide workers to support in installation activities, under supervision from the seller's engineers.
Commission:The Supplier should give drawings and other details of material/preparation required for installation of machinery which the buyer has to prepare and keep ready before the machine arrives at the buyer's factory. Installation and commissioning can be finished within 10-15 days for above machine generally.
Training:Training will include training on computer programming, machine operation and troubleshooting. The training time is at most 5 days for this machine.
The buyer should arrange no less than two people for accepting training. After training, the buyer should sign the "Receiving & Inspection Report" supplied by the seller to demonstrate the successful finish of commissioning and acceptance of the buyer.
