Model JWF1366 JINGWEI brand single head hot selling high technology Drawing Machine
24h Online Customer Service

Product Description

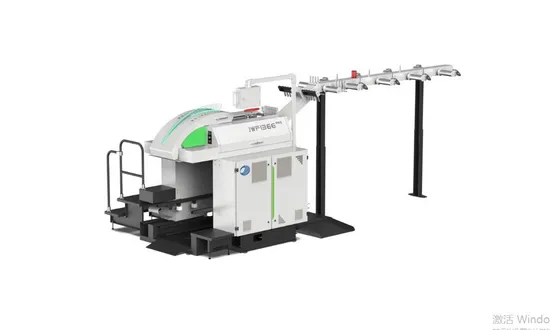

JWF1366 single head high speed autolevelling draw frame is a new type of machine developed and manufactured by our company based on the experience of autolevelling equipment of customers in many countries in recent years. This machine is high-efficiency and energy saving, with output speed up to 1000m/min, equipped with jumbo suction system, humanized autoleveller guide, optional spare cans unit, and remote operation and maintenance, to realize real-time monitoring and save effort.
OPERATION AND MAINTENANCE
More convenient operation and maintenance The operation of the main machine and autolevelling is completed on the touch screen, which makes the operation as convenient as a mobile phone;
UQA and NAS autolevelling systems are available;
During maintenance, the operator can operate most parts of the machine directly to reduce the difficulty of maintenance;
High precision differential box and detection box ensure the stable operation at high speed;
There is no need to remove the T&G roller to replace the T&G roller belt;
It is equipped with standard oil free top roller, which rises and falls synchronously with the spring arm;
The new pneumatic can-changing device is stable and reliable;
New integrated pressure bar without disassembly;
Centralized lubrication is adopted for the bearing in the drafting area.
Details Showing
SUCTION
Jumbo, stable and efficient "new" suction cleaning system
Independent suction system, each cleaning point has independent suction tube;

The observation window is set to facilitate the observation and
treatment of flyings in the air tube;

The independent upper and lower suction channels can adjust the air volume of the upper and lower air channels by adjusting the plate;

Jumbo suction box, equipped with undervoltage alarm device, the operator can clean the cotton box in time according to the alarm instructions on the equipment to be ensure a stable and good suction cleaning effect.

TOP ROLLER & CLEANING
Oiling free roller with new steel cleaning bar ensures
efficiency and quality
The use of oiling free roller, without refueling maintenance;

The top roller rises and falls synchronously with the cradle, which can quickly clean up flying flowers or entangle cotton;

The new steel bar cleaning device effectively ensures the cleaning
effect at high speed;

The new integrated pressure bar without disassembly effectively control the floating fiber and is easy to operate.

CAN-CHANGE
The new pneumatic can-change with intelligent breaking can break sliver to realize producing continuously

The pneumatic can-change has stable and reliable structure, convenient maintenance and ensure continuous production;

Standard intelligent sliver breaking function, strong variety adaptability, sliver breaking efficiency of more than 99%;

It has the function of working can detection to avoid driving without can.

SPARE CANS UNIT(OPTIONAL)
Optional spare cans unit, up to 10 spare cans can be reserved (optional)

According to the user site and needs to customize, to achieve
timely automatic can-filling function;

The storage quantity of single machine and standby cans can
reach up to 10, which can reduce the labor force and ensure the
efficiency of starting;

It is more suitable for high speed or open-end spinning workshop.
DIMENSION
Product Parameters

Adapts fibre length		20~80 mm
Deliveries		1
Doubling		6~8
Total draft		4.75~12.06 (4.75~9.28 with machine)
Mechanical speed		200~800 [m/min]
Drafting type		3 over 3 with pressure bar and guide roller
Main motor		4kW
Slave motor		1.34kW
Installed power		6.49kW
Auto stop motion		Photoelectric stop, proximity switch stop, contact stop(Optional)
Feeding can [mm]		Dia.Φ400,Φ500,Φ600,Φ800~Φ1000(Optional)
		Height 1100,1200
Delivery can [mm]		Dia.Φ400,Φ450,Φ500,Φ600
		Height 900,1100,1200
Loading type		Spring-weighted
Cleaning type	Upper	Fixed steel bar
	Bottom	Reciprocating apron
Can changing type		Pneumatic can changing type
Dust absorption		Centrifugal fan
Autolevelling system		Uster autolevelling system(Standard) or NAS(Optional)
Breaking device		Electronic automatic breaking
Feeding photoelectric detection		4/6 way gratings
Weight of main machine		Approx.1300kg
