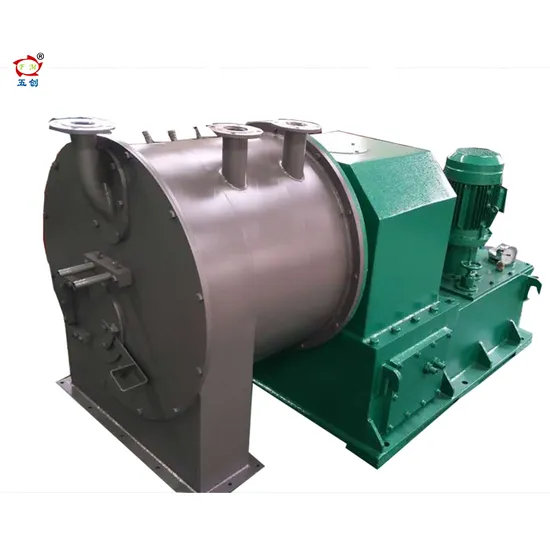

Continuous Sea Salt Separation Processing Two Stage Piston Pusher Centrifuge

Product Description

Product Description
The main motor drives the inner and outsider baskets to rotate at the full speed, material is fed into through a feed pipe. Under the centrifugal force, the liquid discharged out of the basket through filter screen and the holes of the basket, and then out of the machine through the tube for discharging liquid, while the solid deposits in the basket as a ring layer of cake. As a result, pusher plate pushes the cake layer in the inner basket to move out of it and then into the outside basket for further separation, a ring layer of cake being formed, while the outside section of the inner basket pushes the cake layer in the outside basket to move continuously out of the outside basket and then discharge it through the slot for scraper.
HR Series are a kind of two stage horizontal pusher filtering centrifuge that can be continuously operated, They can perform feeding, separating, washing and discharging in sequence at their full-speed running. They have the advantages of continuous operation, stable performance, large capacity, ideal washing effect, low moisture content of cake and less solid content in the liquid. They are suitable for separating the suspension with solid phase particle size of more than 0.05mm and with the concentration of over 35%, and suitable for chemical industry, fertilizer, manufacturing salt and alkali, especially for the solid-liquid separation of sodium chloride, ammonium chloride, ammonium bicarbonate, sodium sulfate and carbamide.

Notes:

1. The technical parameters provided in the instructions of products are preferable.
2. The customer who asks about products please inform us of the characteristic parameter of material and operate condition.
3. The design and manufacturing of individuation are available:
Material: Common stainless steel, special stainless steel, copper alloy or titanium alloy can be used for the material of the parts suspension contacts.
Type of motor: Conventional type of explosion-proof type single-speed motor.
Designs and manufacturing are supplied according to the standard of GMP.
Other technical demands may be discussed.

Salt separation

Technical Parameters

Product Model		HR400-N	HR500-N	HR630-N	HR800-N	HR1000-N
Inner/Outer Basket	Diameter(mm)	337/400	438/500	560/630	720/800	920/1000
	Filtration Zone Length (mm)	145/155	180/180	240/240	240/320	240/320
	RPM (r/min)	1500-2200	1200-2000	1000-1800	800-1600	650-1250
	RCF	503-1083	402-1120	350-1142	286-1145	236-875
Stroke Length (mm)		40	50	50	50	50
Stroke frequency (l/min)		30-80	30-80	30-80	30-80	20-70
Main Motor Power (kW)		11	30-45	37-55	55-75	55-90
Oil Pump Motor Power (kW)		4	15	30	37	45
Production Capacity (t/h)		1-8	5-15	8-25	15-40	18-50
Hydraulic System Working Pressure (MPa)		2. 0-3. 0	2. 0-3. 0	2.0-6.0	2.0-6.0	2.0-6.0
Machine Body Weight (kg)		2480	3100	4100	7000	12000
Dimensions L×W×H (mm)		2460×1286×1030	2750×1480×1290	3690×1600×1265	3700×1800×1450	4200×1900×1900

Main Parts
Packing & Shipping
Company Information

Nanjing FiveMen Machine CO., LTD was founded in 2008. It has now developed into a professional centrifuge development and production enterprise with significant scale, strong scientific research capacity and strong processing capacity. It is a member of China Separation Machinery Standardization Technical Committee and a member of China Separating Machinery Industry Association.
The company has leading technologies, sophisticated processing equipments and mature detection mechanisms. The internal quality management system has been certificated by ISO9001: 2000. It has been widely praised by customers for providing all kinds of centrifuges with advanced technologies and high quality. The company has set up marketing offices in major cities and counties all over the nation, and has a well-trained marketing-service team which is able to provide customers with high quality and satisfactory services, anytime and anywhere.
The company holds the business philosophy that "customer first, reputation foremost", and is brave to make innovations so as to become excellence. The development of an enterprise can't be sustained without the supports from the wide range of clients. We are willing to build a long-term friendly relationship and cooperate with the majority of customers to make achievements together.
Our Services
1. 12 months guarantee period from machine arrive date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4.7* 24 hours technical consultation.
5.Your workers could get trained both in our factory and yours.
6.Routine tracing till the machine work properly will be done timely.
7.We will remind you to do the normal maintenance.
8.Your suggestions or any comments & reflection would be treated in priority.
9.Marketing team will visit you during our visit to your country if your require.
