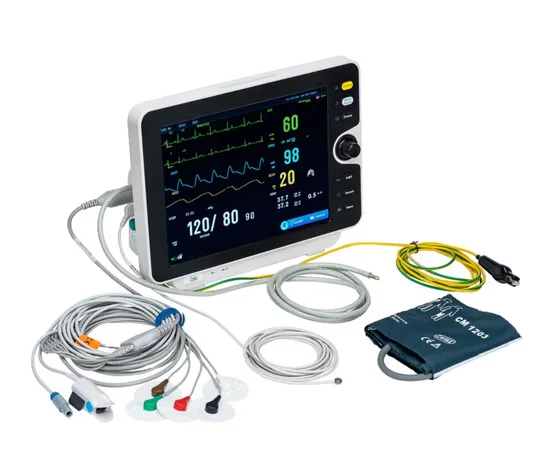

Medical Equipment Vital Signs Monitor with Trolley Medical Multiparameter 12.1 Inch ECG Patient Monitor

Product Description

Medical Equipment Vital Signs Monitor With Trolley Medical Multiparameter 12.1 Inch ECG patient Monitor
Model:AD-P12
Product Description
Technical Specifications

Model	AD-12
Application Range	Adult/Pediatric/Neonatal/Medicin e/Surgery/ Operating Room/ICU/CCU
Display	12.1* real color TFT screen
working environment conditions Temperature	Working temperature0-40ºC Working humidity≤85%
Power supply voltage	AC 100~240V AC
power frequency	50/60Hz, maximum input power 70VA
Built-in lithium battery	d.c11.1V not
Product Size	262*336*84mm
product weight	2.72kg
Gain	X0.25,x0.5, x1,X2,Auto
Waveform speed	12.5mm/s,25mm/s,50mm/s
Diagnosticmode	0.05-130Hz Monitoring mode:0.5-40Hz Operation mode:1~20Hz
Common Mode Rejection Ratio	Diagnosticmode:>90dB Monitoring mode:>100dB Operation mode:>100dB
Electrode polarization voltage	±300mV Input impedan ce≥5M
DC biasvoltage	±300mV
Calibration signal	1mV (peak-to-pea k), accuracy±5%
ST segment detection measurement: Measurement range	-2.0mV-+2.0mV
Measuring Range and Precision Range	Adult Systolic blood pressure40~270mmHg Diastolic blood pressure 10~215mmHg Mean blood pressure 20~235mmHg Static pressure range 0~300mmHg Static pressure precision ±3mmHg
Pressure precision	Max. average error: ±5mmHgi Max stand ard devaton: 8mmHg
Spo2	Measuringrange0~100% Resolution 1% The accuncyis within the range of 70% to 100%, and the measurement error should be ±2%; In therange of 0% to 69%, the measurement error is undefined
Pulse Rate	Measuringrange 30~300bpm Resolution 1bpm Accuracy±3bpm Updatetime ls
Standard accessories	NIBP cuff&tube ECG cable & electrodes Sp02 sensor TEMP probe Lithium-ion battery Power cable Operator's manual
Optional accessories	End-tidal CO2 (optional) Recorder (optional) Dual IBP Nellcor (optional)

Store & Reviewing
ECG	30 minutes one important lead's ECG waveform
Alarm	1800groups Alarm events reviewing
NIBP	400 groups NIBP measurement
Arrhythmia	128 groups data (8 seconds ECG waveforms)
Power	off storage:72 hours trend data & 1 ECG wave form(option)
ECG
Mode	5-leads (standard);3-leadsor 12-leads (option)
Lead selection	I, 11, 1H,aVR,aVL,aVF,V1~V6(option)
Gain	AUTO,0.25x,0.5x,1.0x,2.0x,4.0x -Insulation Breakdown Voltage4000VAC 50/60Hz Sweep speed 6.25mm/s,12.5mm/s,25mm/s,50mm/s
HR Range	Adult:10~300bpm Child & Neonate:10~350bpm -HRAccuracy ±1%or±1 bpm,whichever is greater
IBP(option)
Channel	2
Measurement Range	-50~+300mmH
Unit	mmHg,kPa
Accuracy	±2mmHgor2%,whichever is greater
Alarm
Three Level	Low, medium and high
Indication	Auditory and visual
Setup	Default and custom
Silence	All alarms can be silenced
Volume	45-85 dB measured at 1 meter

Detailed Photos
