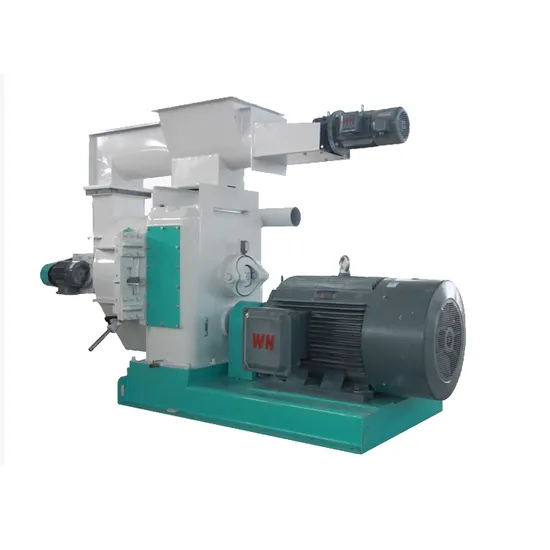

Pinetree Sawdust Biomass Wood Pelleting Machine

Product Description

Pinetree Sawdust Biomass Wood Pelleting Machine
1. Pinetree Sawdust Biomass Wood Pelleting Machine Description:
(1). This pellet machine mainly used for making wood pellets , the pellets used for industry, boiler factories , the machine can be produce φ6.0,φ8.0,φ10.0,φ12.0 pellets.
(2)The machine adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand
(3)Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
(4)the machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime .
2. Pinetree Sawdust Biomass Wood Pelleting Machine Quotation Details :
(1)Payment: 40% payment should be prepaid by telegraph transfer, the balanced 60% should be paid within 5(five) days after got the copy of B/L
(2)Delivery Time: 25- 30 days after receive the advance payment
(3)Price based on FOB Shanghai port,China Per Set
(4)Packing: Standard export packing by Fumigation-free wooden cases
(5)MOQ:1set
(6)Validity of Quotation: 2 months
(7) Warranty Period: 18 months except the spare parts

3. Pinetree Sawdust Biomass Wood Pelleting Machine Main Data:

Model	Main Power(kw)	Capacity(kg/h)	Feeder Power(kw)	Force feeder power(kw)	Die Diameter(mm)
MZLH35	55	400-600	1.1	1.1	350
MZLH420	90	1000-1200	1.5	1.5	420
MZLH508	110	1500-2000	1.5	1.5	508
MZLH558	132	2000-2500	3	2.2	558
MZLH678	185	3000-3500	3	2.2	678
MZLH768	220	3500-4000	3	3	768

Our Service :
We can spply the CO, FORM A, FORME E, FORM F, FORM P certificate of original for you, it may can save you some import tax .
FAQ :
1. What kind of raw materials can be use for make pellets ?
any agriculture waste ,like wood logs, wood chips, wood shaving, sawdust, straw,rice husk and so on .
2. What about the capacity of the pellet plant you have ?
we have the pellet line from 200kg per hour till 10 ton per hour . can design according to customer requirement and raw materials.
Any more information you need Pinetree Sawdust Biomass Wood Pelleting Machine, please feel free to contact with us.
