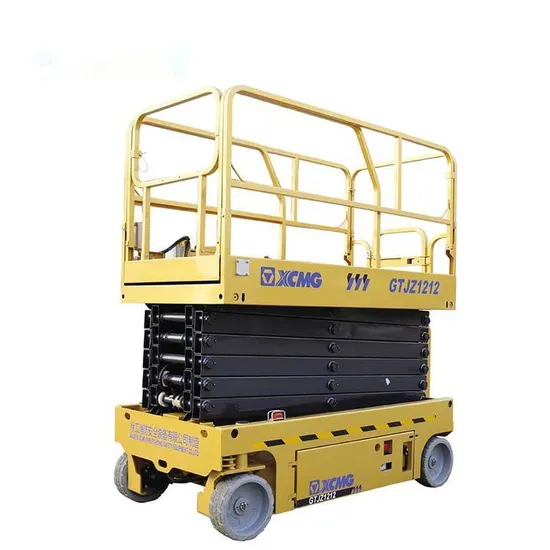

New Trend Xcm G 12m Gtjz1212 Scissor Lift for Sale

Product Description

Detailed Photos
The scissors aerial work platform which is the newly developed series by XCM-G can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.

Performance Characteristics:
1.Convenient Transportation And Stable Operation
The telescoping sub-platform achieves large working space and works with folding platform to realize easier transportation and translocation.The industry-leading automatic pit protection system and the widened wheel tread design enable your free operations even on rough ground.

2.Environmental Cons Truction And Convenient Service
Pure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.

3.General And Modular Design
The modular design for the machine guarantees the universality of parts, makes the customers' repairs and maintenances easier, and achieves more competitive cost.
Product Parameters

Item	Unit	Parameters
Overall length	mm	2485
Overall width	mm	1190
Overall height	mm	2600
Maximum platform height	m	11.8
Size of platform	mm	2276×1120×1254
Platform extension length	mm	900
Minimum turning radius	m	0
Wheel base	mm	1871
Minimum ground clearance (pot hole protector rising/falling)	mm	101/20
The total mass in driving state	kg	3150
Rated load	kg	320
Load of extension platform	kg	115
Lifting speed of working platform	s	61~71
Falling speed of working platform	s	43~58
Driving speed (high)	km/h	3.2
Driving speed (low)	km/h	0.8
Maximum driving platform height	m	11.8
Maximum gradeability		25%
Battery	V/(Ah)	4×12(300)
Charger	A	30
Incline alarming angle		1.5° (both sides)
		3° (front and back)

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, Z F GEAR BOX, etc.
