Industrial Custom Flex Mold PU Timing Transmission Belt with Coating or Covering
Basic Info.
Model NO.
Specilal belt
Applicable Industries
Hotels, Garment Shops, Building Material Shops
Material Type
Polyurethane, PU
Product Name
PU Round Belt
Size
Customise
Customized Support
OEM, ODM
Standard or Nonstandard
Nonstandard
Tensile Strength
Strong
Type
Timing Belt
Transport Package
Carton
Specification
CUSTOMIZED, PU+Steel cord/Kevlar +covering
Trademark
Onlive
Origin
Zhejiang, China
HS Code
3926901000
Production Capacity
10000 Piece/Pieces Per Month
Product Description

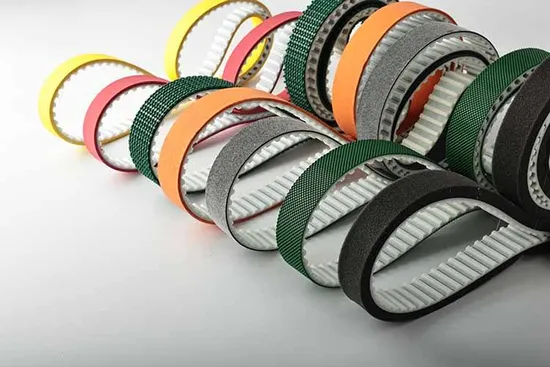

Product Description PU Open Belts are manufactured in thermoplastic polyurethane. It has strong anti-wear. The various of reinforce cord ensure good running capability in the driving. It has small production tolerance. PU open belt has the reliable transmission and the fine size stability. A layer of nylon can be added in the tooth face and /or back in order to guarantee the running specialty in the special applications; also can added a thick layer of polyurethane in the back of the belt to resist corrosion or high loading.| Type & Size | MXL,XL,L,H,XH,XXH,T2.5,T5,T10,T20,AT5,AT10,AT20,HTD2M- 20M,STPD/STS2M-14M,RPP/HPPD2M-14M; As per the demands of customers |
| Material | PU Rubber, Steel reinforced, Fabric, Kevlar cord. |
| Mechanical properties | Dimensional stability; Strong low; Low noise; High wear resistance; No need to maintain; High elastic |
| Working temperature | +30°C to +80°C, Instant high temperature: +110°C |
| Working Pressure | ≤32Mpa Bud -Shape Ring≤50Mpa |
| Working Medium | Hydraulic Oil |
| Characteristics | Aging proof, waterproof, prevent UVA, Ozone-resistant, highly resistant to oil, acid and alkali corrosion resistance |
| Processing | punch/ slot / pattern / block / guide bar / profile |
| Colors | White,black,Red,Various |
| Application | Stone, ceramic,glass,electronics,aluminum, textile, logistics,printing,packaging,paper products processing industries etc. |
| Certification | ISO9001:2000 |
| Type | Pitch (mm) | Tooth Height (mm) | Belt Thickness(mm) |
| H | 12.7 | 2.29 | 4.3 |
| L | 9.525 | 1.9 | 3.6 |
| XL, DXL | 5.08 | 1.27 | 2.3 |
| MXL, DMXL | 2.032 | 0.51 | 1.2 |
| S2M | 2.0 | 0.76 | 1.36 |
| S3M, D3M | 3 | 1.91 | 3.4 |
| S5M | 5 | 1.91 | 3.4 |
| 3M | 3 | 1.13 | 22 |
| 5M, D5M | 5 | 2.1 | 3.6 |
| 8M, D8M | 8 | 3.4 | 5.6 |
| RPP 14M | 14 | 6 | 10 |
| T2.5 | 2.5 | 0.7 | 1.3 |
| T5, DT5 | 5 | 1.27 | 2.3 |
| T10, DT10 | 10 | 2.5 | 4.5 |
| AT5 | 5 | 1.2 | 2.7 |
| AT10, DAT10 | 10 | 2.5 | 4.5 |
| AT20 | 20 | 5 | 8 |
