Stainless Steel PVC Conveyor Belt Joint Hot Press Splice Water Cooling Press Machine

Stainless Steel PVC Conveyor Belt Joint Hot Press Splice Water Cooling Press Machine

US$1,723.00-8,136.00 1 Set (MOQ)

Basic Info.

Model NO.
PB1100/1600/2100 PC2100/3200
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Size
1100mm 1600mm 2100mm 3200mm 4200mm
MOQ
1set
Transport Package
Standard Wood Case
Specification
custom size
Trademark
Holo
Origin
Wenzhou, Zhejiang, China
HS Code
8477800000
Production Capacity
20set/Month

Product Description

Machine Apperance & Specifications
Model(Stainless Steel) PB-600 PB-900 PB-1100 PB-1300 PB-1600 PB-2100
Effective Length 500mm 800mm 1000mm 1200mm 1500mm 2000mm
Effective Width 150mm/200mm
Total Weight 45kg 65kg 87kg 87kg 125kg 196kg
Max.Pressure 2 Bar
Max.Temperature 200 ºC
Power 2016W 3024W 3696W 3300W 5760W 7560W

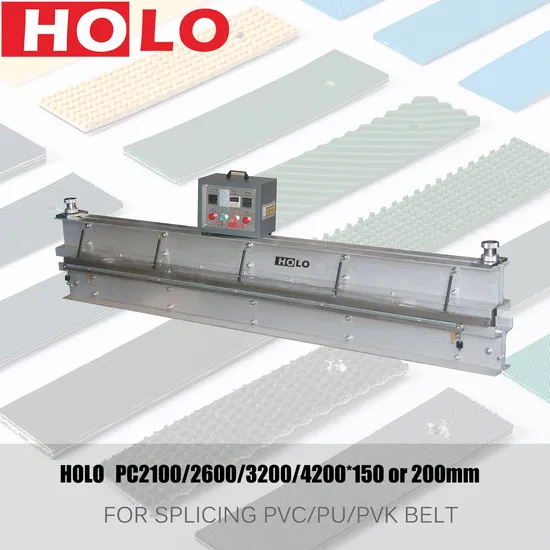

Model(Aluminum Alloy) PC-2100 PC-2600 PC-3200 PC-4200
Effective Length 2000mm 2500mm 3000mm 4000mm
Effective Width 150mm/200mm
Total Weight 196 kg 250kg 340kg 430kg
Max.Pressure 2 Bar
Max.Temperature 200 ºC
Power 7560W 9360W 11520W 15120W

Machine YouTube Linkness: https://cnlong015.en.made-in-china.com
Application:
PB Stainless steel water cooled hot press splicing machine/PC Aluminum alloy water cooled hot press splicing machine
used for PVC belt, Polyurethane belt(PU belt) and Polyester Monofilament synthetic belting.

Features:
1.Temperture Controller for upper and lower heating platen from Omron(Japan), Time Controller from CHNT.
2.Laser silica gel hot platen, better than manual type.
3.Temperature error (Up and bottom hot platen) is less than 3 ºC, heating more uniformer.
Detailed Images:
Packing&Delivery:
We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).
Our Service:
Pre-sales Service
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
After-sales
*Teaching video to show how to work.
*Machine introduction word to show how to work.
Warranty
*Machines are new (or unused) and the guarantee period will be given 12 months from shipment date.
During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality.
Parts damaged because of mishandling and consumable parts are not covered by any warranty.
*All our machines have CE certificates and passed ISO9001-2008
HoloBelt Machines Collocation Solutions
Total solution is how we define Holobelt company. From design, engineering, manufacturing and training,
Holo provides a total workshop solution to our customers helping to give them a competitive advantage in the marketplace.
Workshop Show:
*Conveyor Belt Cutting Slitting Machine
*Conveyor Belt Ply Separator Splitting Machine
*Conveyor Belt Punching Finger Machine
*Conveyor Belt cooled hot press splicing Machine
*Conveyor Belt Welding Machine
*Conveyor Belt Vulcansied Machine
*PU PVC Rubber Conveyor Belt for sell
Welcome to visit our website to view details: cnlong015.en.made-in-china.com
