Combined biomass pellet machine with feeding system
| US$15,000.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
VIC-200C
Application
sawdust pellets
Power Source
Electric
Heating and Ventilation Equipment Type
no
Epidemic Prevention Equipment
no
Blade Type
Straight Teeth
Computerized
Non-Computerized
Certification
QS, ISO9001:2008, CE
Condition
New
CE,SGS
Yes
English Manual
Yes
Delivery Time
7-10days
Certificate of Origin
Issued by Chamber of Commerce
Payment Term
50%T/T as Deposit, The Banlance Will Be Paid Afte
Warranty Time
1 Year
Transport Package
Wooden Box
Specification
CE
Trademark
VIC
Origin
China
HS Code
84793000
Production Capacity
1000sets/Year
Product Description

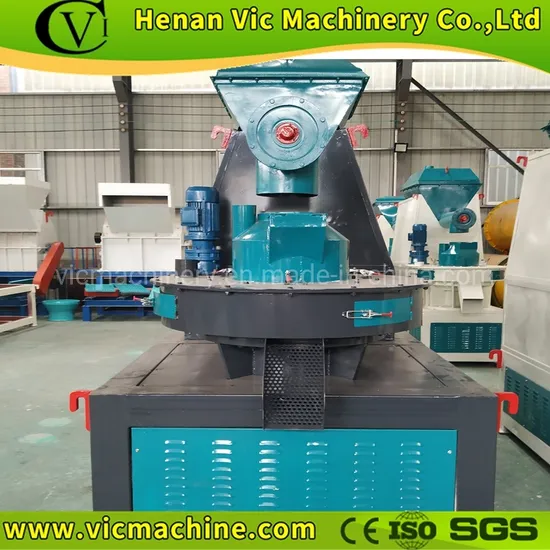

Combined biomass pellet machine with feeding systemIntroduction
The machine is one kind of new model, The main electrical control system is used the international standard-delta starter, running stably, used the KAF two-level gearshift structure, less power consumption .It is mainly used to make the biomass, sawdust pellet from corn straw,green waste,bamboo powder,grazing,straw,rice hull,all kinds of wood and so on.
It also can make feedstuff pellets from corn ,oil cake the fish, chicken, animal and so on.
The final size of the pellets is diameter 6,8,10,12mm,30mm for the sawdust pellet , and 2mm, 4mm, 6mm, 8mm, 10mm, 12mm, for animals food .According to the requirement of clients, it can adjust the length of the pellets
Main data:
| Model | Power | Capacity(kg/h) | Weight(kg) | Size(mm) |
| VIC-150C | 30 | 400-500 | 2000 | 1650*1000*1600 |
| VIC-200C | 40 | 650-750 | 2500 | 1800*1000*1750 |
| VIC-400C | 55 | 800-1200 | 3500 | 2000*1100*1800 |
| VIC-500C | 90 | 1200-1800 | 4500 | 2550*1500*2200 |
More photos:
Pressing wheel
Mould
Final production
workshop corner
