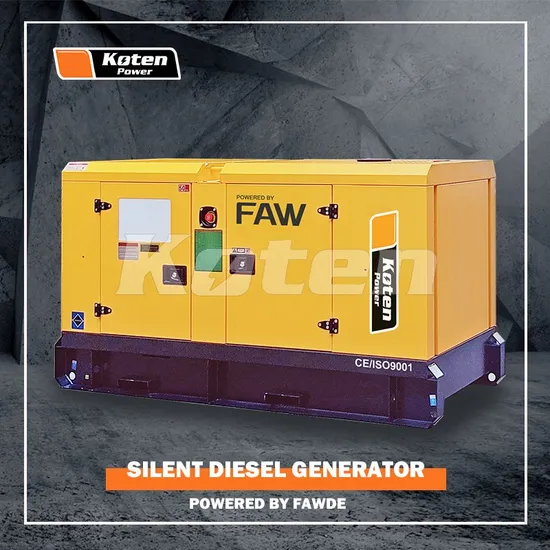

Koten 50Hz 400V Fawde Series 12kw 15kVA Portable Electric Silent Diesel Engine Power Generator

Product Description

Company Profile Fuzhou Koten Power Equipment Co.,Ltd. focuses on the researching, developing, manufacturing, marketing for diesel generators, ac alternators. The company is located in Fuzhou City Fujian Province,China and our factory located in Fuan City,Fujian Province,China. With an annual capacity of 2,000 sets.
Koten as strategic partner and designated OEM manufacturer of Cummin s, Perkin s, Deutz, Doosan in China. All our products with excellent reliability and durability can meet various harsh environments and high altitude use. They are widely used in national defense, energy, power, transportation, communications, finance, healthcare, tourism, real estate, mines, factories and other fields. And they are exported to Southeast Asia, Middle East, Africa, Europe, the Americas and other regions. We provide the systematic technical support for each customer's and each project's different needs to seek.
Koten passed the ISO9001 quality management system certification, ISO14001 environmental management system certification. And products passed a comprehensive testing , which with high performance and reliable quality are in full compliance with national and international standards of the industry , and achieved Gentile certification , radio and television network license, CE certification, etc.
To do business with Koten, we provide users with first-class, internationally competitive products and best 24hours per 7days service. You are welcomed to contact us any time.
Product Description DIESEL GENERATOR SET SPECIFICATIONS:

Diesel Generator Set Specifications		Prime Power Fuel Consumption
Genset Model	KDF-15S	100%	4.8 L/hr
Frequency/Voltage	50Hz / 400V	75%	3.87 L/hr
Phase	3Ph	50%	3.17 L/hr
Prime Power	12kW/15kVA	Dimension
Standby Power	13.2kW/16.5kVA	Dimension	Silent Type
Engine Make /Model	FAWDE 4DW81-23D	Length (L)	1950mm
Alternator Make /Model	Brushless, self-exciting	Width (W)	820mm
Control Panel	ComAp AMF8	Height (H)	1050mm
Base Frame / Silent Canopy	Robust Structure/ Corrosion Resistant	Optional
Circuit Breaker Type	3pole MCCB (4P Available as option)	Genset Color
Built in Base Fuel Tank Capacity	8-12hrs	Battery Charger and ATS
Silent sound level	72 dB(@7m)	Water Heater
Battery	Maintenance free Lead Acid	Daily fuel tank

FAWDE Engine		Alternator
Engine Brand /Model	FAWDE 4DW81-23D	Number of phase	3
Fuel injection system	Direct Inject	Power factor (Cos Phi)	0.8
No. of cylinders	4	Poles	4
Bore	85mm	Winding Connections (standard)	Star-serie
Stroke	100mm	Terminals	12
Compression ratio	17.0:1	Insulation type	H class
Displacement	2.27L	Winding Pitch	2/3
Engine speed	1500 rpm	IP rating	IP23
Rated power	17KW	Excitation system	Brushless,Self-excited
Intake type	Natural Aspiration	Bearing	Single bearing
Cooling methed	Forced watercooling	Voltage regulation	±1%
Governor	Mechanical Or Electronic	Altitude	≤1000
Start motor	12V	Couping	Flexible disc

Detailed Photos

Workshop
Packaging & Shipping
Certifications
Partner
After Sales Service 1. Koten Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment. 2.Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first. 3. Service and parts are available from Fuzhou Koten Power Equipment Co.,Ltd. or distributors in your location. 4.All the products from Fuzhou Koten Power Equipment Co., Ltd. is CE marked.
