Wholesale Ultrasonic Thickness Gauges Thickness Measuring Instrument U100

Product Description

Product Description

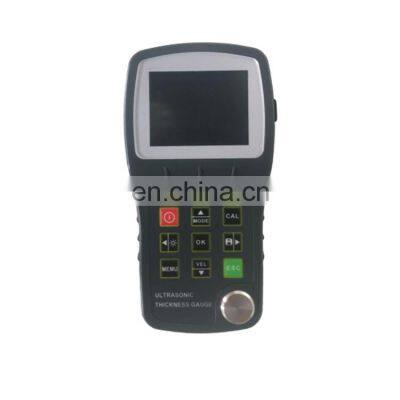

U100 Ultrasonic Thickness GaugeUsage OverviewThis series of Ultrasonic Thickness Gauges intelligently use pulse-echo and echo-echo detection technology. The advanced digital signal processing chip greatly improves the detection accuracy and greatly improves the yield in the production process. The thickness gauge uses a high-resolution true-color LCD screen, and a highly “human-machine” operating system will provide users an extraordinary experience. The thickness gauge is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, fiberglass, and any other good conductor of ultrasonic waves. It can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.Product DescriptionSpecificationSpecificationU100U150Working principleUltrasound(pulse-echo)Ultrasound (pulse-echo, echo-echo)Scope of test0.75-300mm0.75-300mm,penetration coating 2-150mmResolution0.1mm(＞100mm)/0.1mm(＜100mm)0.1mm(＞100mm)/0.1mm(＜100mm)Indication accuracy±(0.5%H+0.01)mm±(0.5%H+0.01)mmUnitmm/inchmm/inchLanguageChinese-EnglishChinese-EnglishScan mode25 times/second25 times/secondFrenquency bandwidth0.5-15MHz0.5-15MHzSpeed of sound1000~9999m/s1000~9999m/sOptional probeHigh tempetrature/thin wall coarse grain/ small diameterPenetration/ High tempetrature/thin wall coarse grain/ small diameter2.4 inch HD color screenHigh contrast 320x240 true color LCD screenHigh contrast 320x240 true color LCD screenSound path correctionAutomaticAutomaticProbe connection status indicationHaveHaveStorageTF card machine storge, can be exported to saveTF card machine storge, can be exported to saveCommunicationUSB interface communicates with host computerUSB interface communicates with host computerDimensions145x75x27mm145x75x27mmThe standard configuration1 host/1 probe/2 batteries/1 coupling agent/1 set of document/1 box1 host/1 probe/2 batteries/1 coupling agent/1 set of document/1 boxProduct Features1.High-precision thickness measurement: With zero-point calibration and two-point calibration functions, system errors can be automatically corrected; the speed of sound can be reversed based on known thicknesses to improve measurement accuracy.2.Scan mode: real-time display of the maximum and minimum values of the measured material.3.Communication and storage: USB interface can communicate with upper computer to realize online measurement of thickness measurement data, TF card storage.4.Thickness measurement of through-coating: The powerful thickness measurement function of through-coating which could avoid the tedious preparation work of hard grinding. And it only needs treat a slight coating surface for testing thickness measurement easily.5.Accurate measurement value: 0.1 /0.01mm resolution. High-precision measurement circuit guarantees 0.1/0.01mm or 0.01/0.001inch resolution in the entire measurement range.6.Display interface: 2.4-inch (320 * 240) true color LCD screen as the display interface, the backlight brightness is adjustable, and the screen is automatically turned off.Unpacking displayOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
