Double Door Butterfly Cone Fan Axial Flow Air Cooling Fans Ventilation Exhaust Fans for Poultry Farming Animal Husbandry Livestock Equipment Large Supply
Basic Info.
Model NO.
DJF(e)
Usage
Poultry House, Greenhouse, Industrial Factory
Application
Chicken Layer Broiler Cow Pig
Power Source
Electric
Certification
ISO9001:2008, CE
Condition
New
Warranty
2 Years
Frame Material
Galvanized Sheet
Zinc Coating
275g
Motor
Good Quality Chinese Motor
Belt
Mitsubishi B Type
Size
1380*1380*1480mm
Rated Voltage
380V / 415V / 220V Customized
Frequency
50Hz/ 60Hz
Phase
3phase / Single Phase
Air Flow
51020m3/H
Speed
1 Speed
Name
Double Door Butterfly Cone Fan Wall Mounted
Apply
Poultry House, Greenhouse, Industrial Factory
Fuction
Ventilation Air Cooling Exhaust Fans
Model
Yuyun Sanhe Djf(E) Series Cone Fan
Transport Package
Standard Paper Carton
Specification
International standard
Trademark
Yuyun Sanhe
Origin
Shandong China
HS Code
8414809090
Production Capacity
300PCS/Day
Product Description

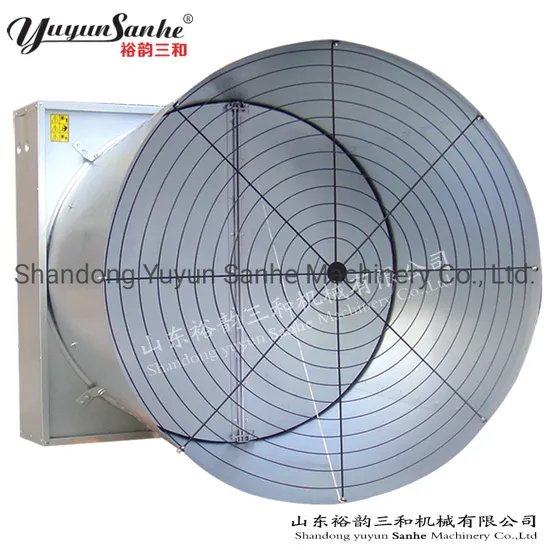

DJF(e) Series Double Door Butterfly Cone FanProduct Application:
DJF(e) Series double door butterfly cone fan is widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc. Main Features:
1) Hot-dip galvanized plate adopt 275g/sqm galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,
utmost cost-effectiveglobally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow Technical Parameter:
| Model | Drive | Blades Diameter | Blades Rotational Speed | Motor Rotational Speed | Air Flow (m³/h) | Noise Decibels (db) | Input Power (W) | Voltage (V) | Frequency (HZ) | Outline Size (H*W*T) (mm) |
| DJF(e)-1000 | Belt | 910mm | 438rpm | 1400rpm | 28000 | ≤64 | 550 | 220 / 380/ Customized | 50 / 60 | 1000*1000*1160 |
| DJF(e)-1100 | Belt | 1000mm | 600rpm | 1400rpm | 36000 | ≤64 | 750 | 1100*1100*1150 | ||
| DJF(e)-1380 | Belt | 1270mm | 439rpm | 1400rpm | 51020 | ≤64 | 1100 | 1380*1380*1300 |
Product Description:
| Double Door 1.Using advanced front double door opening device,small wind resistance, good sealing, high efficiency 2.Lengthened cone design improves exhaust power. | |
| Frame Hot Galvanized sheet with zinc thickness of 275g/sqm, avoiding rust effectively.Rubber Sealing Rubber sealing device is equipped for the double door close to avoid the air backflow. Greatly improved the running efficiency compared with the same power fan | |
| Bearing Imported double-row bearing with special waterproof design. Advantage: High strength, low noise, free maintenance and long service life. | |
| Blade Support Base 1.Material: Aluminum Magnesium Alloy. 2. Type: Plug-in connection Advantage: Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided | |
| Fan Blades 1. Material : 430 stainless steel, thickness 1.2mm 2. Diameter: 1270mm Advantage: Large air flow, no deformation, no fracture, no dust, attractive and durable. Note: Blade material also have galvanized sheet, aluminum alloy for option | |
| Belt Brand: Mitsuboshi belt (Japanese) Type: B type, B88 Advantage: B type belt is 3 times longer service life than A type belt, maintenance free. | |
| Motor 1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor 2. Motor Protection Grade: IP55 3. Isulation Class: F grade Advantage: Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. |
About our Company
Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in
China,equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
