CNC Vertical Machining Center Series (3-AXIS HARD RAIL)

Product Description

High quality configuration
High quality configuration is an important part of high quality machine tools. Each machine tool carefully selected Germany, Japan, China Taiwan and other well-known brands of high-quality components, to ensure the continuous stable and efficient operation of machine tools.
All precision datum surfaces, such as between the spindle head and spindle, between the ball screw mounting objects and mounting surfaces, are used for manual scraping and repairing precision, and the contact rate can be maximized to obtain a reliable support datum. Through scraping and grinding operation, the amount of a time is about 1-3μm, and the flatness, straight Angle and true straightness which are difficult to be achieved by mechanical processing can be obtained to ensure the excellent quality of the machine.
To provide customers with high quality products and satisfactory service, the factory products for high standard control and inspection, for each process to develop strict technical standards, the perfect quality demands to implement every link of production, to achieve product quality assurance and technology upgrade.

Technical Parameters

	Name	Unit	VMC-850	VMC-855	VMC-1060	VMC-1270
Working table	Table size (length × width)	mm	1050×500	1050×520	1300×600	1360×700
	Maximum load of table	kg	600	600	800	1000
	Table T-slot (slot number x slot width x pitch)	mm	5-18×90	5.18×100	5-18×120	5-18×152.5
	Triaxial stroke (X/Y/Z)	mm	800/500/550	800/500/550	1000/600/600	1200/700/600
	Distance from spindle end face to work surface	mm	105-655	105-655	180-780	150-750
	Distance between spindle center and column guide rail surface	mm	550	550	600	780

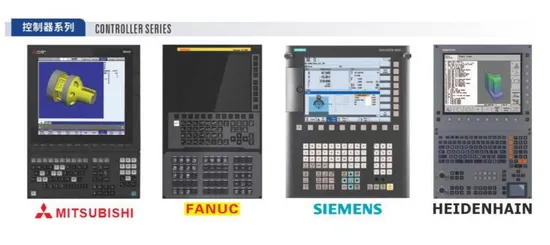

Feeding system	CNC		MITSUBISHI:M80A/M80B,FANUC:0i-MD/Oimate-MD,SIEMENS
	Rapid displacement in the X/Y/Z axis	m/min	16	16	16	16
	Maximum cutting feed speed	mm/min	0-10000	0-10000	0-10000	0-10000
Automatic Tool Changing System	Standard cutter quantity		Turntable Style Tool Magazine:20; Disc type:24	Turntable Style Tool Magazine:20; Disc type:24	Turntable Style Tool Magazine:20; Disc type:24	Turntable Style Tool Magazine:20; Disc type:24
	Maximum diameter/length of too	mm	φ80/300	φ80/300	φ80/300	φ80/300
	Tool exchange mode		href="javascript:;" Air-operated	Air-operated	Air-operated	Air-operated
	Exchange time	S	Turntable Style Tool Magazine:5S Disc type:2.5s	Turntable Style Tool Magazine:5S Disc type:2.5s	Turntable Style Tool Magazine:5S Disc type:2.5s	Turntable Style Tool Magazine:5S Disc type:2.5s
Precision	Positioning accuracy	mm	0.008	0.008	0.01	0.01
	Repeated accuracy	mm	0.005	0.005	0.005	0.005
Spindle system	Spindle speeds	rpm	8000	8000	8000	8000
	Spindle system (Model/mounting diameter)		BT40/φ150	BT40/φ150	BT40/φ150	BT50/φ155
	Main drive form		Belt Drive	Belt Drive	Belt Drive	Belt Drive
	Spindle motor	KW	7.5	7.5	11	15
Air Pressure	Air demand	kg/cmz	≥6	≥6	≥6	≥6
	Air Ventilation	m?/min	≥0.3	20.3	≥0.3	20.3
Other	Machine weight	kg	5200	5500	7500	9200
	Overall dimensions (length × width × height)	mm	2700×2300×2600	2700×2300×2600	3300×2500×2200	3511×2750×2800

	Name	Unit	VMC-1370	VMC-1580	VMC-1690	VMC-1890
Working table	Table size (length × width)	mm	1400×710	1700×800	1800×900	2000×900
	Maximum load of table	kg	1000	1500	1600	1600
	Table T-slot (slot number x slot width x pitch)	mm	5-18x152.5	5-22×135	5-22×165	5-22x165
	Triaxial stroke (X/Y/Z)	mm	1300/700/650	1500/800/700	1600/900/680	1800/900/680
	Distance from spindle end face to work surface	mm	150-800	150-870	160-840	160-840
	Distance between spindle center and column guide rail surface	mm	785	810	950	950
Feeding system	CNC		MITSUBISHI:M80A/M80B.FANUC:0i-MD/0imate-MD,SIEMENS
	Rapid displacement in the X/Y/Z axis	m/min	16	15	15	15
	Maximum cutting feed speed	mm/min	0-10000	0-10000	0-10000	0-10000
Automatic Tool Changing System	Standard cutter quantity		Disc type:24	Disc type:24	Disc type:24	Disc type:24
	Maximum diameter/length of too	mm	φ110/300	φ110/300	φ110/300	φ110/300
	Tool exchange mode		Air-operated	Air-operated	Air-operated	Air-operated
	Exchange time	S	Disc type:5s	Disc type:5s	Disc type:5s	Disc type:5s
Precision	Positioning accuracy	mm	0.012	0.015	0.015	0.015
	Repeated accuracy	mm	0.006	0.01	0.01	0.01
Spindle system	Spindle speeds	rpm	6000	6000	6000	6000
	Spindle system (Model/mounting diameter)		BT50/φ155	BT50/φ190	BT50/φ190	BT50/φ190
	Main drive form		Belt Drive	Belt Drive	Belt Drive	Belt Drive
	Spindle motor	KW	15	18.5	18.5	18.5
Air Pressure	Air demand	kg/cmz	≥6	≥6	≥6	≥6
	Air Ventilation	m?/min	≥0.3	20.5	≥0.5	≥0.5
Other	Machine weight	kg	10500	12500	14000	15000
	Overall dimensions (length × width × height)	mm	3560×3200×2850	4260×3545×3200	4260×3645×3200	4800×3400×3800

Precision flower shoveling is a more difficult skill than wood carving, and it is the starting point for the basic accuracy of precision equipment. The spatula eliminates our dependence on other tool machines and also eliminates deviations caused by clamping force and thermal energy. In order to ensure the accuracy of each machine tool, we grasp every detail and every step.
