Small Precision Twin Screw Plastic Experiment Line with Ideal for Formulation Development and Small Scale Production

Small Precision Twin Screw Plastic Experiment Line with Ideal for Formulation Development and Small Scale Production

US$49,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HTGD-20
Type
Extruder
Plastic Processed
Applicable for Hot Melt Extrusion (Hme) of Various
Product Type
Extrusion Molding Machine
Feeding Mode
Force-Feeding
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Customizable
Yes
Control Mode
PLC & Touch Screen Control
Screw Diameter
25mm
Electrical Control System
Siemens PLC
L/D
40:1(up to 48:1)
Main Motor Brand
Siemens
Weight
810kg
Pressure Measuring Range
0~35.0MPa
Max. Speed
600rpm
Temp. Accuracy
1ºC
Pressure Measuring Accuracy
0.2%F.S
Motor Power
7.5kw
Output
0.5-25kg/H
Transport Package
Standard Export Wooden Packing
Specification
2575X690X1660mm
Trademark
Hartek
Origin
China
HS Code
847720

Product Description

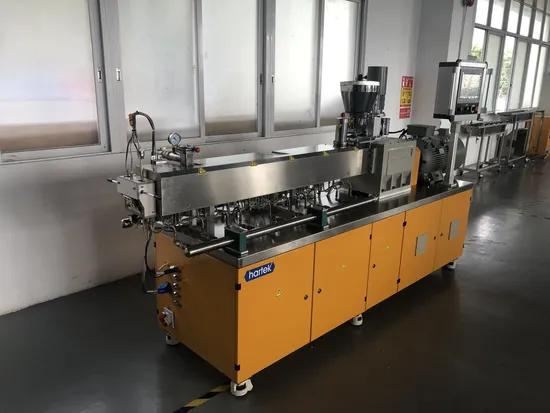

Product Performance of Lab Twin Screw Extruder:
* Split opening barrel and screw structure of the building block make it easy and quick to adjust the process.
* Quick-opening head and mesh changer, fast material exchange and quick change.
* SIEMENS touching screen PLC control system,highly intelligent, easy to operate.
Application Scope of Lab Twin Screw Extruder:
* Mixing, kneading and pelletizing of general plastics, engineering plastics, elastomer, etc.
* Material plasticization, conveying and reactive extrusion
* High effective compounding of polymer alloy
* Modification of filled polymer

Technical Parameters
Model HTGD-11 HTGD-16 HTGD-20 HTGD-25 HTGD-35
Screw Diameter(mm) 11.7 15.6 21.7 25 34.5
L/D Ratio 40:1 40:1 40:1(up to 48:1) 40:1(up to 48:1) 40:1(up to 48:1)
Motor Power(kW) 1 2 5.5 7.5 18.5
Max. Speed(rpm) 600 600 600 600 600
Max. Temp.(ºC) 350.0 350(optional 450) 350(optional 450) 350.0 (optional 450) 350(optional 450)
Temp. Accuracy(ºC) ±1.0 ±1.0 ±1.0 ±1.0 ±1.0
Pressure Measuring Range(Mpa) 0~35.0 0~35.0 0~35.0 0~35.0 0~35.0
Pressure Measuring Accuracy 0.2%F.S 0.2%F.S 0.2%F.S 0.2%F.S 0.2%F.S
Output (kg/h) 0.1-1 0.1~5 0.5~20 1~30 5~80
Weight(kg) 135 268 719 785 908
Dimension 1200×400×550mm 1382×690×1230mm 2375×690×1630mm 2575×690×1630mm 3375×690×1660mm

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.
